144cores 1U 19‘ MPO&MTP-LC Angled Rack mount patch panel-No Modular design
Share to:
Description
1. Product Overview
The UHD Series Angled Rack mount integrated patch panel is a 1U (44.3 mm) high-density fiber distribution patch panel designed for 19-inch (483 mm) rack mounting. It is an integrated, non-modular angled breakout panel with a total capacity of 144 fibers:
- Front — 12 groups of LC ports, 12 LC ports per group (72 x LC duplex adapters = 144 LC ports), mounted on an angled plane for improved patch-cord management;
- Rear — 12 x MPO-12 adapters accept high-density MPO trunk cables (12 x 12 fibers = 144 fibers);
- Internal interconnection — factory-terminated 0.9 mm Loose-buffered breakout cords with MPO (male) plugs, each MPO-12 trunk fanning out to one group of 12 LC ports without any field splicing.
The chassis is manufactured from SPCC, combining light weight with high mechanical strength and reliable grounding. The panel supports OS1, OS2, OM3, OM4 and OM5 fiber classes, with UPC or APC polish options, making it suitable for single-mode and multimode networks from enterprise LAN to data center backbones. The angled front design guides patch cords to the cable-management channels at a controlled angle, protecting fiber bend radius and simplifying front access.
2. Port Map & Capacity
Table 1 summarizes the port configuration and key parameters of the panel.
| Item | Configuration |
| Rack height | 1U (44.3 mm) |
| Chassis width | 483 mm (19 inch) |
| Front ports | 12 groups x 12 LC ports (72 x LC duplex, 144 LC ports), angled mounting |
| Rear ports | 12 x MPO-12 adapters (144 fibers) |
| Total fiber count | 144 |
| Breakout media | MPO (male) — LC 12-core breakout cords, 0.9 mm Loose-buffered fiber |
| Fiber classes | OS1 / OS2 / OM3 / OM4 / OM5 |
| Chassis material | SPCC |
Table 1 — Port map and key parameters
3. Product Structure
3.1 Product Photo

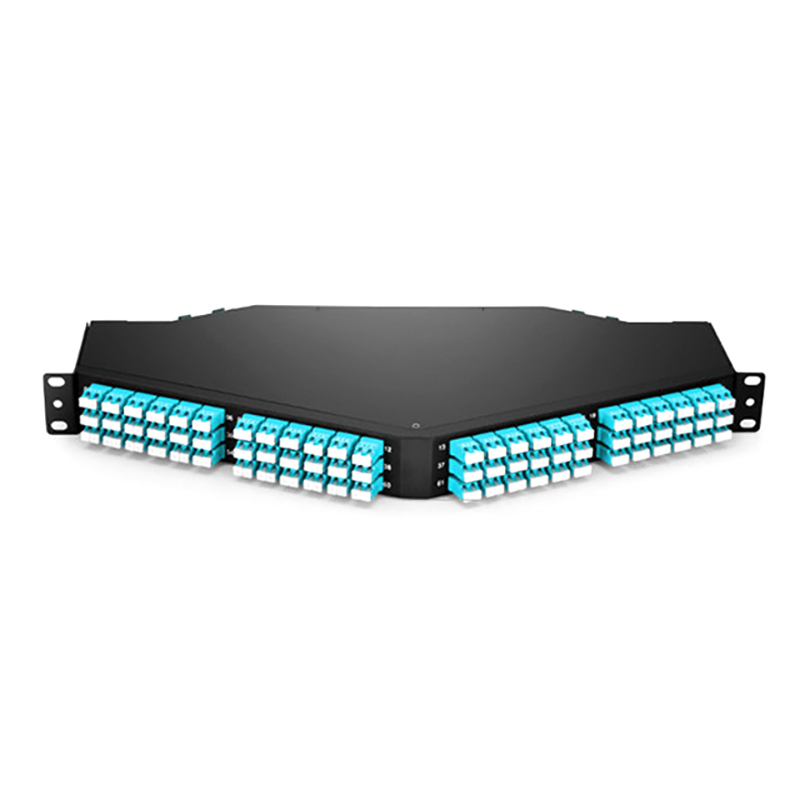

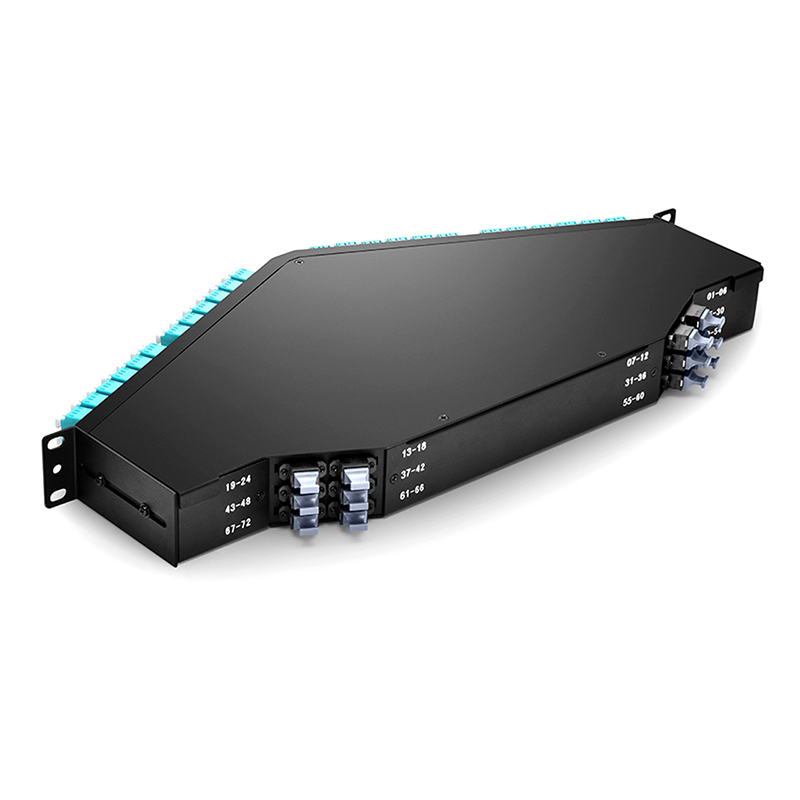

Figure 1 — [Model No.] 1U 144-core angled MPO-LC breakout patch panel (product photo).
3.2 Front View

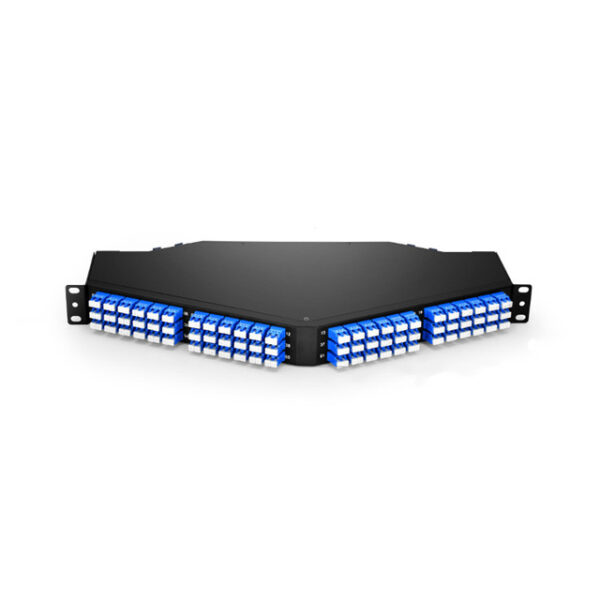

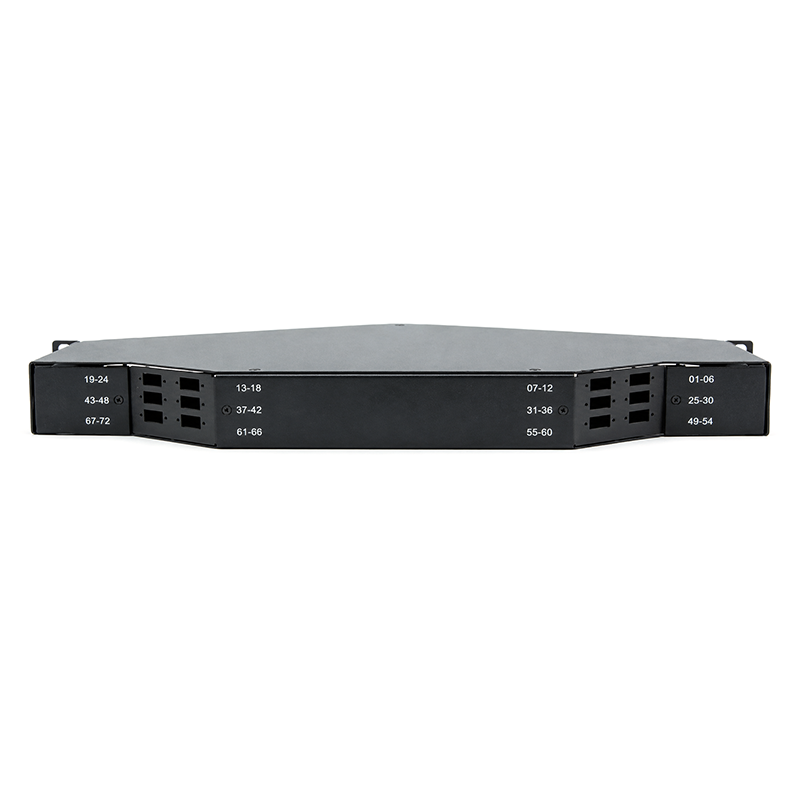

Figure 2 — Front view: 12 groups x 12 LC ports (72 x LC duplex, 144 ports), angled adapter mounting. Schematic.
3.3 Rear View
Figure 3 — Rear view: 12 x MPO-12 adapters (144 fibers). Schematic.
3.4 Internal Breakout Structure
Figure 4 — Internal interconnection: MPO (male) plugs to LC via 0.9 mm 12-fiber breakout cords. Schematic.
3.5 Main Components
| Component | Description |
| Chassis body | Aluminum alloy frame, 1U, 483 mm (19-inch) rack width, integrated one-piece design. |
| Mounting ears | Rack-mount flanges with slotted holes, compliant with EIA-310-E rack-hole spacing. |
| Angled front panel | 12 groups of LC duplex adapters (6 duplex per group) mounted on an angled plane. |
| Rear MPO plate | 12 x MPO-12 adapters (UPC/APC) for MPO trunk cable termination. |
| Breakout harness | Factory-terminated 0.9 mm Loose-buffered breakout cords with MPO (male) plugs, 12-fiber per trunk. |
| Grounding point | Dedicated grounding stud for chassis earthing. |
| Cable management | Angled front guides patch cords into side channels; rear trunk retention included. |
| Labeling | Group (G1–G12) and port numbering for fast identification. |
Table 2 — Main components
4. Design Principles
4.1 Integrated Non-Modular Design
Unlike cassette-based patch panels, this panel is a one-piece integrated breakout unit: the breakout harness is permanently installed at the factory, eliminating modular cassette slots and their associated insertion loss and mechanical tolerance. The result is a compact, robust panel with a clean front face.
4.2 Angled LC Mounting
The front LC adapters are mounted on an angled plane. Patch cords exit the adapters at a controlled angle and are guided into the side cable-management channels, keeping the minimum bend radius, reducing strain on connectors, and improving front-panel readability and access.
4.3 Fixed High-Density Breakout
The panel terminates 144 fibers in a single 1U of rack space: 12 MPO-12 trunk interfaces on the rear are broken out into 144 individual LC connections on the front. Each MPO-12 trunk fans out to one 12-LC group, giving a clean one-to-one mapping. This removes the need for separate LC patch panels and trunk fan-out cassettes, saving rack height and cabling volume.
4.4 Factory-Terminated Breakout Harness
The internal interconnection is a pre-terminated, pre-tested 0.9 mm Loose-buffered breakout harness with MPO (male) plugs. Because the harness is factory terminated, no splicing or field termination is required during installation, which improves link quality and shortens deployment time.
4.5 0.9 mm Loose-Buffered Fiber Design
0.9 mm Loose-buffered fiber provides a compact, robust breakout medium inside the panel. The buffered construction protects the fiber from mechanical stress and simplifies routing while maintaining the required minimum bend radius.
4.6 Polarity Management
MPO-based links follow the polarity methods (Type A, Type B and Type C) defined in ANSI/TIA-568.3-D. The fixed breakout harness is manufactured with the selected polarity; trunk cables, harness and patch cords are chosen together to ensure end-to-end polarity consistency.
4.7 SPCC Chassis and Standard Mounting
The SPCC chassis offers a light weight, high rigidity and an effective grounding path, while ventilated openings allow natural airflow. The panel follows the 19-inch equipment practice (483 mm width, 44.3 mm per rack unit) in accordance with EIA-310-E / IEC 60297-3-100, ensuring drop-in compatibility with standard racks.
5. International Standards & Compliance
The product is designed and tested in accordance with the following international standards:
| Standard | Title / Scope |
| IEC 61754-7 | Fibre optic connector interfaces — Type MPO connector family (multi-fiber push-on). |
| TIA-604-5 (FOCIS 5) | Fiber optic connector intermateability standard — Type MPO. |
| ISO/IEC 11801-1 | Information technology — Generic cabling for customer premises. |
| ANSI/TIA-568.3-D | Optical fiber cabling components standard (including MPO polarity Methods A/B/C). |
| Telcordia GR-1209-CORE | Generic requirements for passive optical components. |
| Telcordia GR-1221-CORE | Generic reliability assurance requirements for passive optical components. |
| Telcordia GR-1435 | Generic requirements for multi-fiber optical connectors. |
| IEC 61300-3-4 | Basic test and measurement procedures — Attenuation (insertion loss measurement). |
| IEC 60825-1 | Safety of laser products — Part 1: Equipment classification and requirements. |
| EIA-310-E / IEC 60297-3-100 | 19-inch rack equipment practice: 482.6 mm width, 44.45 mm per rack unit. |
| RoHS 2011/65/EU | Restriction of hazardous substances. |
Table 3 — International standards and compliance
6. Technical Specifications
6.1 Mechanical Specifications
| Item | Specification |
| Rack height | 1U (44.3 mm) |
| Chassis width | 483 mm (19 inch) |
| Chassis depth | 120 mm (approx.) |
| Front ports | 12 groups x 12 LC (72 x LC duplex, 144 LC ports), angled |
| Rear ports | 12 x MPO-12 adapters |
| Total fiber count | 144 |
| Chassis material | Aluminum alloy |
| Surface finish | [Finish, e.g. anodized / powder-coated] |
| Weight (empty) | [Weight] kg |
| Mounting | 19-inch rack, EIA-310-E |
Table 4 — Mechanical specifications
6.2 Optical Performance (Typical)
Values below are typical catalog figures measured under IEC 61300-3-4. Final guaranteed values are confirmed with the ordered configuration.
| Parameter | Typical Value |
| Breakout medium | 0.9 mm Loose-buffered fiber, factory terminated, 12-fiber per trunk |
| Front connector | Duplex LC, UPC or APC |
| Rear connector | MPO-12 adapters (mate with MPO male plugs, UPC or APC) |
| Insertion loss — MPO-12 (per mated pair) | ≤ 0.75 dB max (typ. ≤ 0.35 dB) |
| Insertion loss — LC duplex (per mated pair) | ≤ 0.30 dB max (typ. ≤ 0.15 dB) |
| Return loss — MPO (SM APC / SM UPC / MM) | ≥ 60 dB / ≥ 50 dB / ≥ 20 dB |
| Return loss — LC (SM APC / SM UPC / MM) | ≥ 60 dB / ≥ 50 dB / ≥ 30 dB |
| Polarity | Type A / B / C (per TIA-568.3-D) |
| Durability | ≥ 500 mating cycles |
| Operating wavelength | 850 / 1300 nm (MM); 1310 / 1550 nm (SM) |
Table 5 — Optical performance (typical)
6.3 Environmental Specifications
| Item | Value |
| Operating temperature | -20 °C to +55 °C (typical) |
| Storage temperature | -40 °C to +70 °C (typical) |
| Relative humidity | 5 % to 95 % RH, non-condensing |
| Safety | Laser safety per IEC 60825-1 (Class 1M when terminated) |
| Compliance | RoHS 2011/65/EU; Telcordia GR-1209 / GR-1221 design practice |
Table 6 — Environmental specifications
7. Fiber Types & Options
The panel supports all common fiber classes. Select the fiber class together with the connector polish (UPC / APC) and polarity method when ordering.
| Fiber Class | Reference Standard | Core / Cladding | Typical Application |
| OS1 | ISO/IEC 11801 (ITU-T G.652) | 9 / 125 µm | Indoor single-mode links, ≤ 1.0 dB/km |
| OS2 | ISO/IEC 11801 (ITU-T G.652.D) | 9 / 125 µm | Single-mode backbone, ≤ 0.4 dB/km, indoor/outdoor |
| OM3 | ISO/IEC 11801, IEC 60793-2-10 | 50 / 125 µm | 10 GbE up to ~300 m (850 nm) |
| OM4 | ISO/IEC 11801, IEC 60793-2-10 | 50 / 125 µm | 40G / 100G SR4 up to ~150 m (850 nm) |
| OM5 | ISO/IEC 11801, IEC 60793-2-10 | 50 / 125 µm | WBMMF 850–953 nm, 200G / 400G SWDM |
Table 7 — Supported fiber classes
Other options: connector polishes (UPC / APC), polarity (A / B / C), panel finish and custom silk-screen labeling are available on request.
8. Application Scenarios

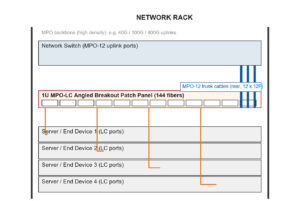

Figure 5 — Typical application: MPO backbone to LC server access. Schematic.
Typical deployment scenarios include:
- Data centers — MDA / HDA / EDA zones: 40G, 100G or 400G MPO backbone links terminated on the rear, fanned out to duplex LC server and switch access ports.
- Enterprise and campus LAN — backbone consolidation and high-density patching in equipment rooms and telecommunications rooms.
- Telecom central offices and FTTx — high-density single-mode (OS1/OS2) fiber distribution and ODF-style termination.
- Cloud and colocation facilities — space-constrained patching where every rack unit of height is at a premium.
- Storage networks (SAN) and high-performance computing — deterministic, high-channel-count fiber management.
9. Installation & Maintenance
9.1 Installation
- Mount the panel on 19-inch rack rails using the slotted mounting ears; tighten all rack screws to prevent movement.
- Connect the chassis grounding stud to the rack earth before cabling.
- Plug MPO trunk cables into the rear MPO-12 adapters; the internal breakout harness is already factory-terminated, so no splicing is required.
- Route front patch cords into the angled cable-management channels, respecting the minimum bend radius of the cables.
- Label each group (G1–G12) and port according to the local labeling plan.
9.2 Maintenance and Safety
- Clean connector ferrules before every mating; always fit dust caps on unused adapters and connectors.
- Do not look directly into a fiber end-face or adapter while a light source is connected — laser safety per IEC 60825-1.
- Keep fibers within their bend radius at all times; avoid sharp folds and tensile loads on patch cords and trunk cables.
- Check insertion loss after re-mating; repeated contamination is the most common cause of excess loss in high-density patching.
