MPO-SC&MPO

1.  Product Portfolio

Our core product family is built around MPO (Multi-fiber Push-On) connectivity and hybrid transitions to single-fiber interfaces. All products are available from 4 to 288 fibers, in single-mode or multimode, and with standard or low-loss performance grades.

1.1  MPO-MPO Trunk & Harness Cables

High-density MPO-MPO assemblies used as data-center backbone, structured cabling, 40G/100G/400G/800G parallel optics and high-density interconnection. Available in 8F, 12F, 16F, 24F, 32F, 48F and higher multi-row configurations up to 288F, with male/female MPO ends, key-up/key-down orientation, polarity methods A/B/C and standard or low-loss grades.

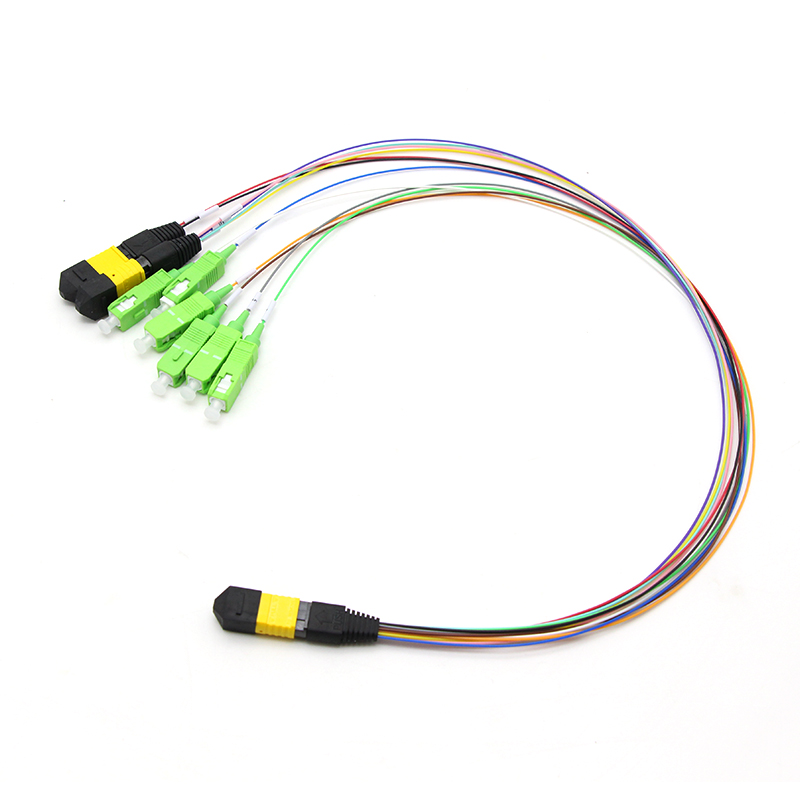

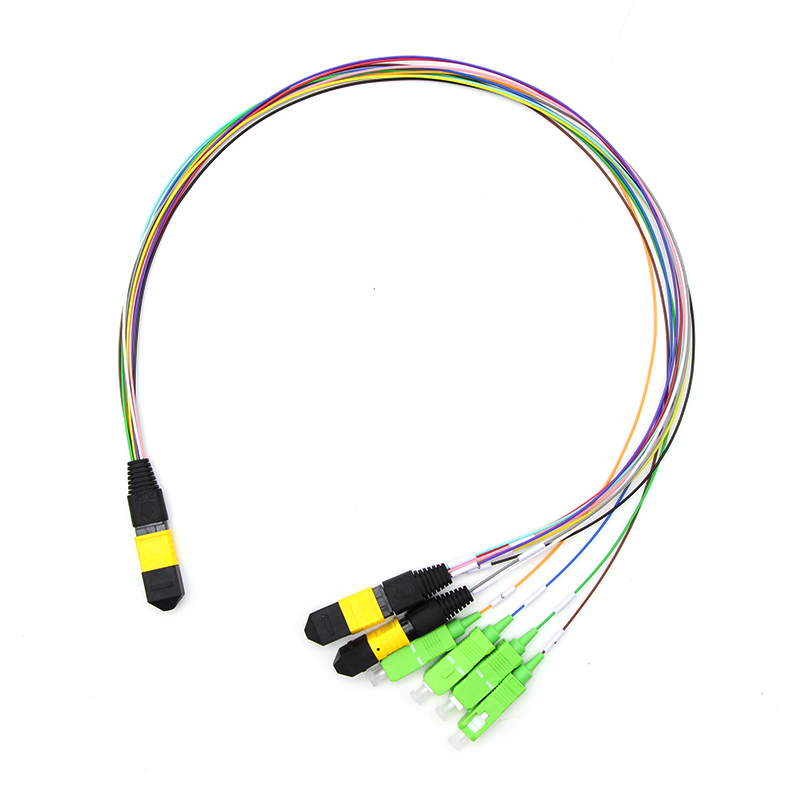

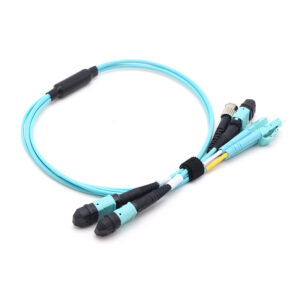

1.2  MPO-to-FC / LC / SC / E2000 Hybrid Breakout Cables

Fan-out (breakout) assemblies that convert one high-density MPO end into individual FC, LC, SC or E2000 connectors for connection to transceivers, patch panels, OLTs and test equipment. Customizable number of legs, individual leg lengths, boot styles, breakout kits and labeling.

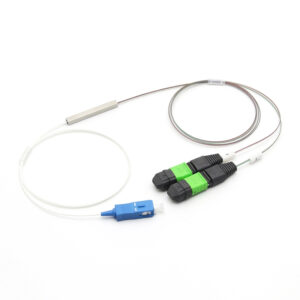

1.3  MPO Splitter & Fan-out Modules

PLC (Planar Lightwave Circuit) splitter modules, 1xN and 2xN configurations, packaged as MPO input modules, cassettes or fan-out trays for PON, FTTH, monitoring and high-density distribution applications.

1.4  Custom Cable Structures

Round, ribbon, mini-diameter, armored and hybrid cable constructions; LSZH, OFNR, OFNP, PVC, PE or PU jackets; custom colors, inkjet printing, flag tags and packaging designed for your installation environment.

Table 1  Product portfolio matrix

2.  Customization Capabilities

Customization is our core strength. We do not restrict you to a fixed catalog – we develop and build exactly what your project needs, and we support you from concept to volume production.

2.1  Fiber Count – from 4 to 288 Fibers

We produce assemblies from 4-fiber to 288-fiber configurations, using industry-standard MPO ferrules (8F, 12F, 16F and 24F per MT ferrule, plus multi-row versions) per IEC 61754-7 and TIA-604-5 (FOCIS 5). Hybrid counts, mixed row layouts and non-standard configurations can be developed on request.

2.2  Fiber Types

Multimode OM3 / OM4 / OM5 (50/125um) and OM1/OM2 (62.5/125um); single-mode OS1/OS2 (9/125um); bend-insensitive G.657.A1/A2 fibers; 250um bare fiber, 900um tight buffer or ribbon fiber inputs, depending on the assembly structure.

2.3  Connectors & Polish

MPO (MTP-compatible), FC, LC, SC and E2000 connector families with UPC or APC (8-degree) polish; polarity methods A/B/C per TIA-568; key-up / key-down and male / female MPO configurations; custom connector body colors, boots and housings.

2.4  Cable Structures & Jackets

Round cables, ribbon cables, breakout (fan-out) harnesses, mini-diameter and armored versions; LSZH, OFNR, OFNP, PVC, PE and PU jacket materials; custom jacket colors and diameters; custom length with agreed tolerance; inkjet printing, flag tags and sequential numbering.

2.5  Performance Grades

Standard, low-loss and elite grades with controlled insertion loss (IL) and return loss (RL) targets. 100% IL/RL testing and end-face inspection on every connector; custom acceptance criteria agreed with your quality team.

2.6  Packaging, Labeling & Private Label

Custom cartons and reels, bubble bags and export packing; your logo, label design and product marking; private-label branding; bilingual documentation, datasheets, test reports and manuals prepared in your format.

Table 2  Customization option matrix

3.  ODM Services – What We Undertake

As an ODM partner we take responsibility for the full product lifecycle, not just production. The following services are included in our standard collaboration and can be scaled to your needs.

3.1  Design & Engineering Support

Requirement analysis and feasibility review; 2D/3D drawings, cable layouts and assembly drawings; design-for-manufacturing (DFM) input; specification proposals and engineering change management (ECN) throughout the project.

3.2  Tooling & Mold Development

Custom molds and tooling for boots, housings, adapter housings, breakout kits and packaging; tooling ownership and maintenance terms agreed per project.

3.3  Prototyping & Sample Validation

Fast sample delivery for design verification; iterative sample optimization; samples supplied with full test reports (IL, RL, end-face inspection) for your approval before mass production.

3.4  Testing & Certification

100% insertion-loss and return-loss testing; 100% end-face inspection per IEC 61300-3-35; mechanical and environmental testing per IEC 61300-2 series and Telcordia GR-326 on a sampling basis; RoHS / REACH compliance documentation; support for third-party laboratory testing.

3.5  Private Label, Packaging & Documentation

Your brand on the product, label and carton; custom datasheets, user manuals and test certificates; serial-number tracing and quality records available on request.

3.6  Supply Chain & Logistics

Raw-material sourcing and inventory planning; export packing; sea, air and express shipment; flexible Incoterms (EXW / FOB / CIF / DDP); worldwide delivery with shipment tracking.

Table 3  ODM service scope

4.  Customization Process

Our customization process is a clear, eight-step workflow designed to turn your idea into a volume product with the least risk and the shortest lead time. Feedback from production and the field flows back into design, so every new project starts smarter.

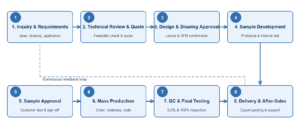

Figure 1  ODM customization process – from inquiry to after-sales support

Table 4  Process steps and indicative timeline

5.  Quality Assurance & Standards

Every assembly is built and tested against internationally recognized standards. Our quality system covers incoming materials, in-process control, 100% final optical testing and complete traceability.

Table 5  Standards compliance reference

Table 6  Typical optical performance (reference values – final values per agreed specification)

6.  Production & Delivery Capability

We are equipped to move from prototype to volume production quickly and reliably. Our production lines cover cable cutting and stripping, fiber termination, polishing, end-face inspection, assembly, 100% optical testing and final packaging, all under one roof.

• Annual production capacity: [capacity] assemblies (to be confirmed per project forecast).
• Sample lead time: 5-7 working days (typical).
• Mass-production lead time: 15-30 days depending on configuration and quantity.
• MOQ: flexible – from small pilot batches to large volume orders; terms agreed per project.
• Export packing and worldwide shipping with full tracking; Incoterms flexible (EXW / FOB / CIF / DDP).

7.  How to Start a Project With Us

Getting started is simple: send us your inquiry with the information in the checklist below (or just send your drawing – we will handle the rest). Our engineering team responds with a feasibility review and quotation, and we walk you through the process step by step.

Table 7  Ordering information checklist

We look forward to being your long-term ODM partner.
