OM4 8F MPO jumper cable

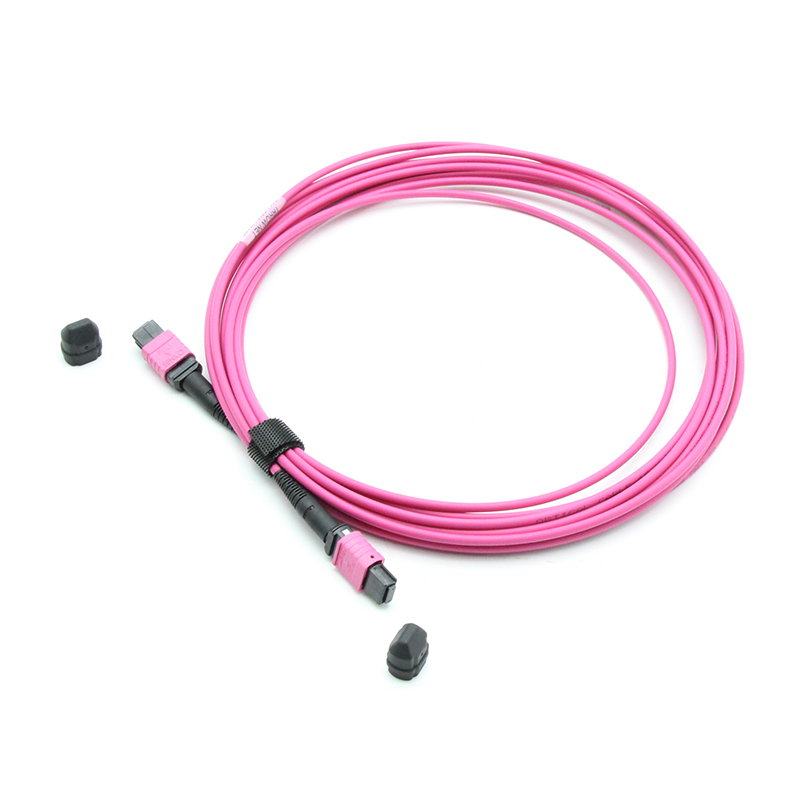

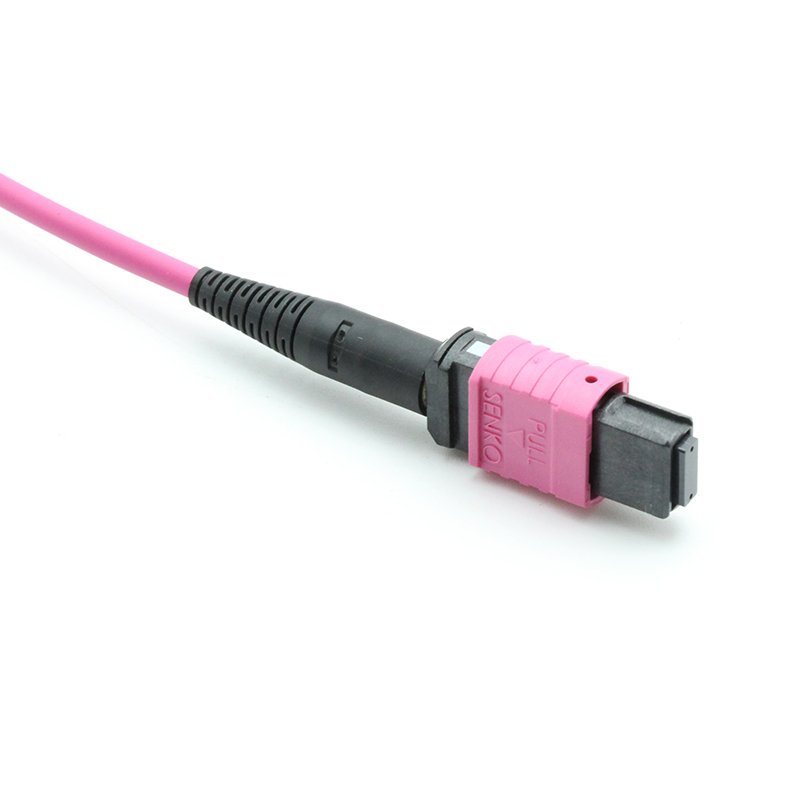

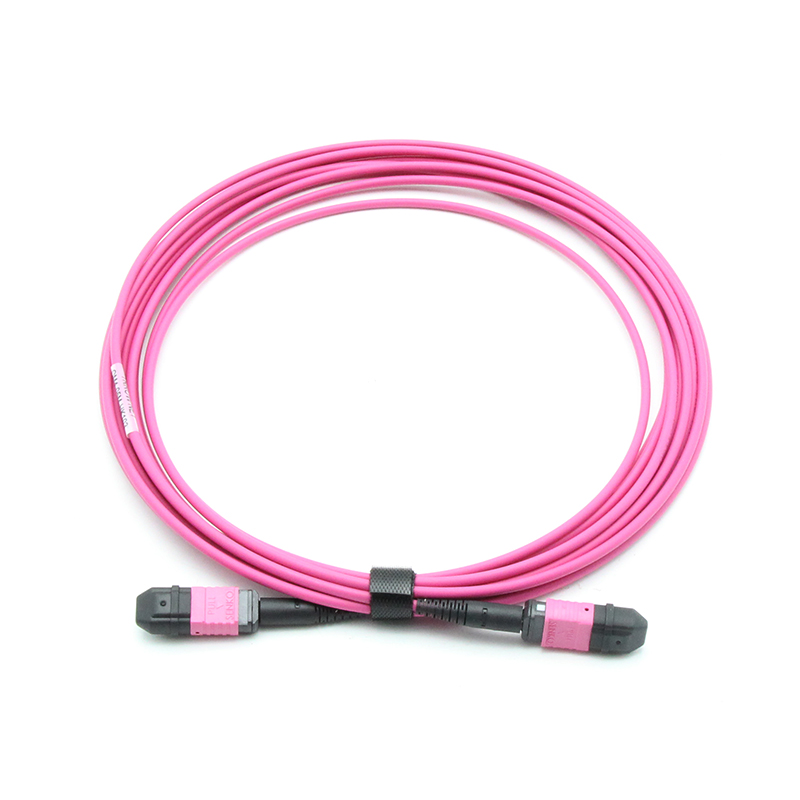

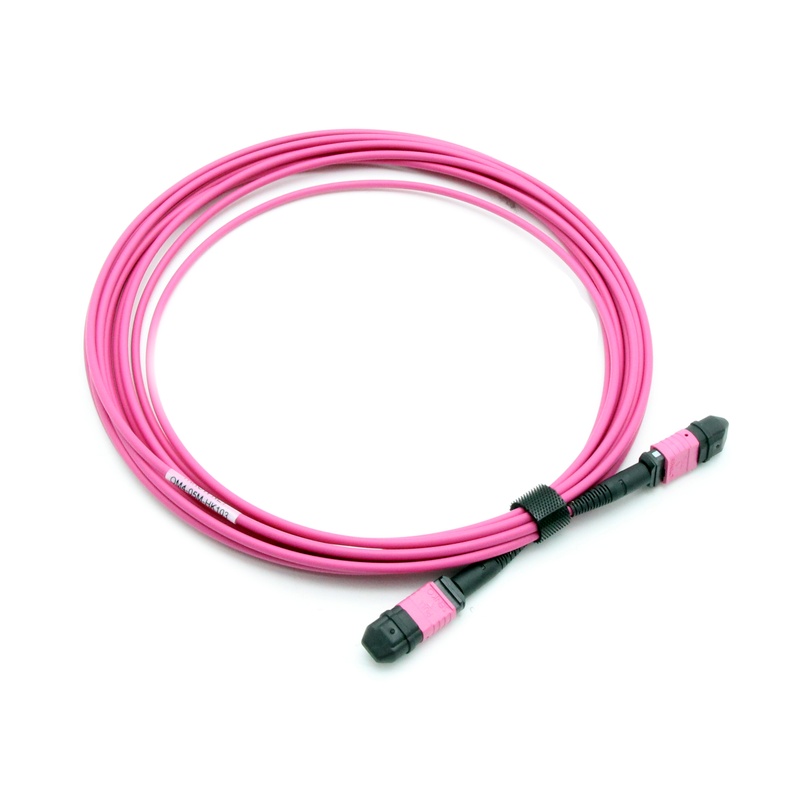

This OM4 8-core MPO jumper cable adopts integrated MT ferrule structure with 8 fibers in one connector, featuring low insertion loss, LSZH flame-retardant jacket and push-pull latch for easy plugging. Pre-tested for stable signal transmission, it perfectly matches QSFP+/QSFP28 transceivers. Widely deployed in high-density data centers, cloud computing rooms and SAN systems to build 40G/100G parallel optical links, saving cabinet space and simplifying dense fiber wiring management.
All of FDC’s MPO Connectors are from Senko/Nissin/Sumitomo/high cost-performance China Local Brand. At the same time，FDC‘s MPO cable are available with fiber brands of Corning,YOFC,Fiberhome, Jfiber,Fiberhome,ZTT,etc. LSZH,OFNP,OFNR Jacket material…
Share to:
Description
MPO Connector Types
| Connector | Fiber Channel |
 |
 |
| MPO Female Connectors | 8 Fibers |
| Note: Female connector need to connect with male connector type. | |
MPO products’ Details& Standard
| Connector | Reference | Housing Details |
| MPO Single Mode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MPO)
SM APC: Yellow connectors+black boot (Super low loss MPO) |
| MPO Multimode | IEC 61754-7 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
- Meets IEC Standard IEC-61754-7;IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Cable Parameters-8F Microfiber cable
| Fiber Count | OD(mm) | Minimum allowable
Tensile Strength (N) |
minimum allowable
Crush Load(N/100mm) |
Minimum Bending
Radius(MM) |
| 8 | 2.0±0.15
&3.0±0.15 |
Short-term: 150；
Long-term: 80 |
Short-term: 500；
Long-term: 150 |
Static：10D
Dynamic：20D |
Optical Specification
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| Insertion loss (MPO)
(IEC 61300-3-34) |
Standard loss：≤0.75dB(max), ≤0.35dB(Typical)
Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss：≤0.6dB(max), ≤0.35(Typical)
Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Return loss(MPO) | ≥60dB（8degree polishing） | ≥25dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | \ | |
| ROC-Y(ABS) | 50mm | \ | ||
| Angle | Angle-X | -0.2° | -0.2° | |
| Angle-Y | APC | 7.85° | 8.15° | |
| PC | -0.2° | -0.2° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||

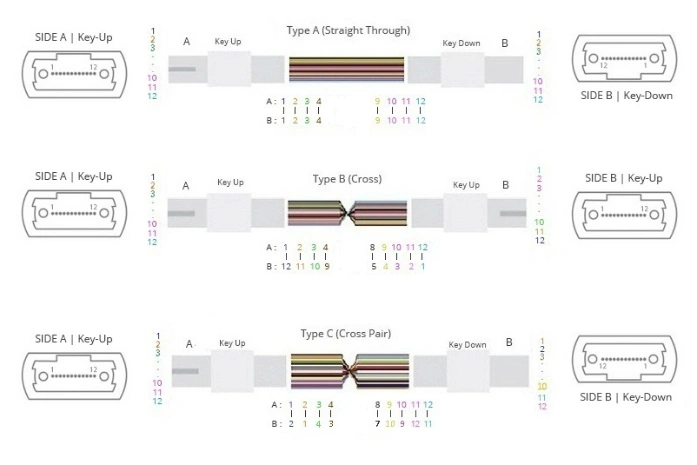

Pre-terminated MPO Technology-Polarity
8F MPO:
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Application
8F OM4 Multimode MPO Patch Cord
Bandwidth: Delivers 4700 MHz·km bandwidth at 850nm, with lower attenuation and higher bandwidth capacity compared with OM3 for enhanced high-speed performance.
Transmission Rate & Reach: Supports 40G SR4 up to 150m, 100G SR4 up to 100m; does not support 400G, 800G and 1.6T transmission.
Application Scenarios:
Serves as the mainstream cabling solution for high-density cloud data centers, cabinet jumper wiring, and large-scale short-range 40G/100G optical interconnection.
DCI（Data center interconnection）Application
