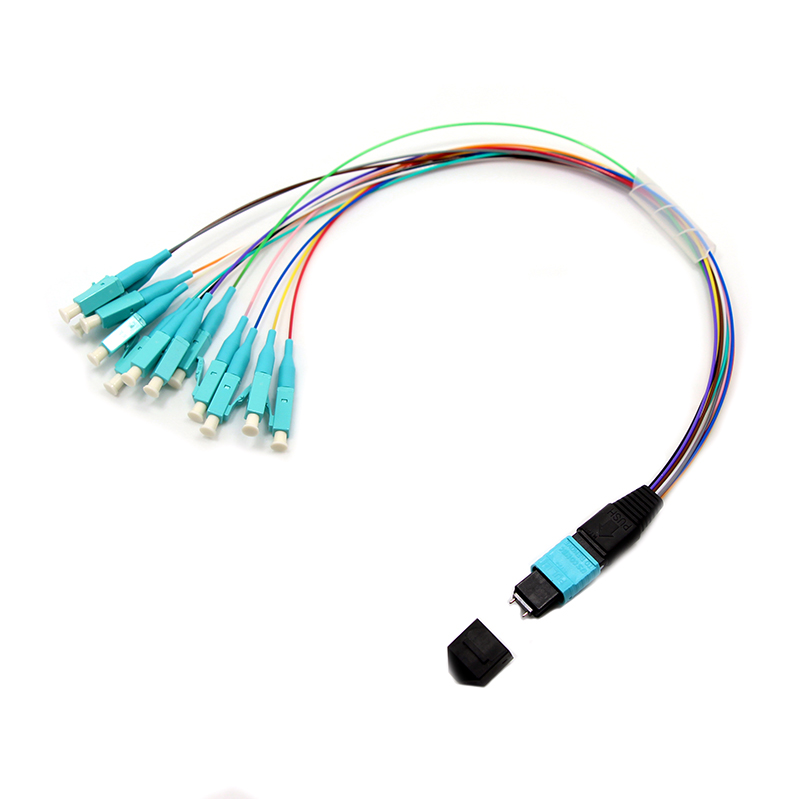

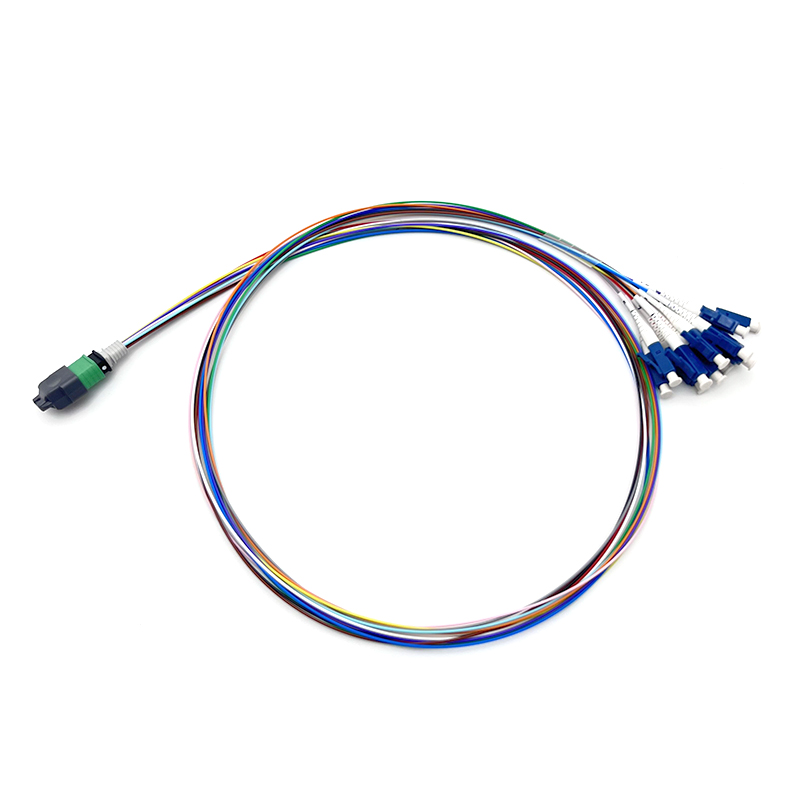

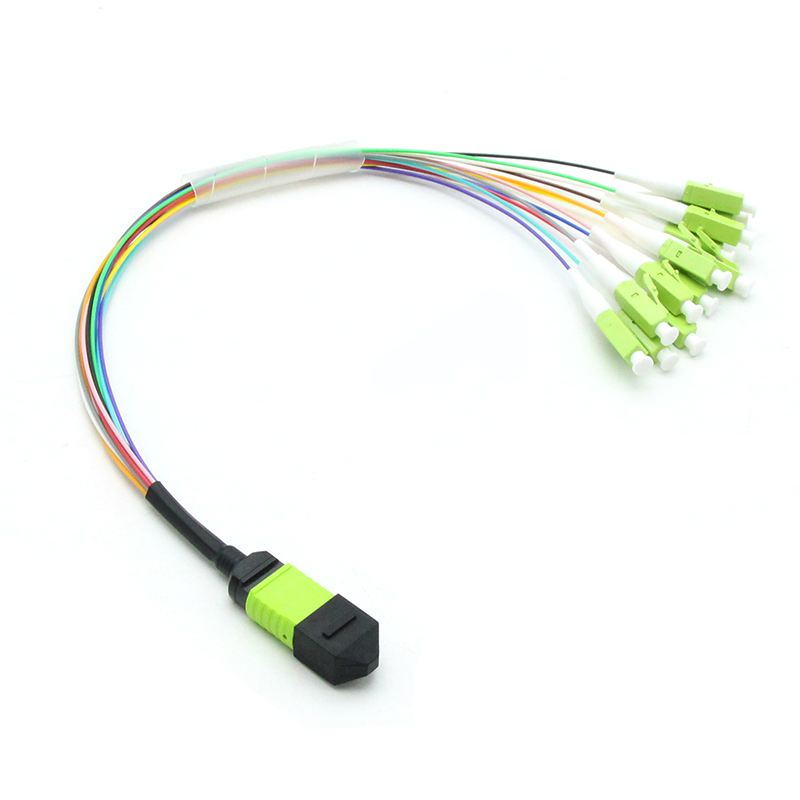

12F MTPĀ® (Male) -LC Fan-out 0.9mm 30cm cables
This series products are Engineered for high-density data center environments, this 12F MTPĀ® (Male) to LC Fan-out cable serves as a critical transition link for MTP-LC LGX module cassettes. Featuring a single 12-fiber MTPĀ® Male connector that seamlessly breaks out into individual LC interfaces via 0.9mm tight-buffered legs, it maximizes port utilization within compact rack spaces.
The precisely calibrated 30cm fan-out length is tailored to fit the internal architecture of LGX cassettes, preventing cable clutter and ensuring optimal bend radius management. Each assembly is factory-terminated and 100% optically tested to guarantee minimal insertion loss and exceptional signal integrity.
In practical applications, this plug-and-play solution is extensively deployed to bridge high-density MTPĀ® trunks with traditional LC patch panels or active equipment. It is widely utilized in 40G and 100G parallel optics deployments, enabling seamless connectivity between spine switches, top-of-rack servers, and storage arrays. By eliminating the need for on-site fiber splicing, it significantly accelerates deployment timelines and provides a streamlined, future-proof pathway for migrating legacy LC infrastructure to high-capacity MTPĀ® backbone networks.
Description
12F MTPĀ® (Male) -LCĀ 0.9mm 30cm patch cableās Optical Specification:
| Spec items. | Insertion lossĀ (IEC 61300-3-xx) | Return loss(IEC 61300-3-6 /TIA/EIA-455-107) | Standard |
| MTP SM | Standard MTPļ¼ā¤0.75dB(max), ā¤0.50dB(Typical) Elite MTP:ā¤0.35dB(max), ā¤0.20dB(Typical) |
APCā„60dB; PCā„50dB | IEC 61300-3-4 / TIA/EIA-455-34 |
| MTP MM | Standard MTPļ¼ā¤0.6dB(max), ā¤0.50dB(Typical) Elite MTP:ā¤0.35dB(max), ā¤0.20dB(Typical) |
PCā„50dB | IEC 61300-3-34 / TIA/EIA-455-61 |
| LC SM | ā¤0.3dB | APCā„60dB; PCā„50dB | IEC 61300-3-4 / TIA/EIA-455-34 |
| LC MM | ā¤0.3dB | PCā„50dB | IEC 61300-3-34 / TIA/EIA-455-61 |
End-Face 3D Interference Index
| Parameter | MTPĀ® | LC | Standard |
| Radius of Curvature, ROC | X: ā„ 2000 mm,Y: 50 mm | 10 ~ 25 mm (PC) 5 ~ 12 mm (APC) |
IEC 61300-3-30 |
| Fiber Height / Protrusion | -300 nm ~ +300 nm | Ā± 100 nm | IEC 61300-3-30 |
| Apex Offset | N/A | ā¤ 50 Ī¼m | IEC 61300-3-30 |
| Angle | 8.0Ā° Ā± 0.5Ā° (APC) | 8.0Ā° Ā± 0.5Ā° (APC) | IEC 61300-3-30 |
| Core Dip | “-200 nm ~ +300 nm (SM)” | N/A | IEC 61300-3-30 |
Ā
LC End-face Quality (SM)
| Zone | Range (Ī¼m) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Ā
LC End-face Quality (MM)
| Zone | Range (Ī¼m) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||

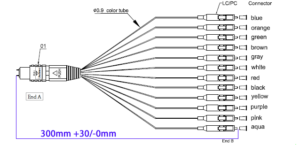

Cable Drawing
MTPĀ® Connector Types
| Connector | Fiber Channel |
 |
 |
| MTPĀ® Female no pin Connectors | 12 Fibers |
| Note: Female connector need to connect with male connector type. | |
MTPĀ® productsā Details& Standard:
| Connector | Reference | Housing Details |
| MTPĀ®Ā Singlemode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Elite MTP) |
| MTPĀ®Ā Multimode | IEC 61754-7 | OM3 PC: Aqua connectors+black boot (Standard Loss&Elite MTP)
OM4 PC: Magenta connectors+black boot (Standard Loss&Elite MTP) |
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Application
- Data Center High-Speed Migration:Ā Essential for upgrading legacy 10G networks toĀ 40G (QSFP+) and 100G (QSFP28)Ā architectures. The MPO end connects to the high-speed switch, while the LC ends distribute signals to break-out modules or legacy equipment.
- Server Rack Interconnects:Ā TheĀ 30cm lengthĀ is specifically designed for “Top-of-Rack” (ToR) switching environments, connecting patch panels to servers without excess cable clutter, improving airflow and cooling efficiency.
- Fiber-to-the-Antenna (FTTA):Ā In telecom infrastructure, these cables connect remote radio heads to baseband units, where space is limited and durability is required.
- Test and Measurement:Ā Ideal for lab environments where technicians need to quickly adapt MPO-based test equipment to standard LC interfaces for debugging optical links.
