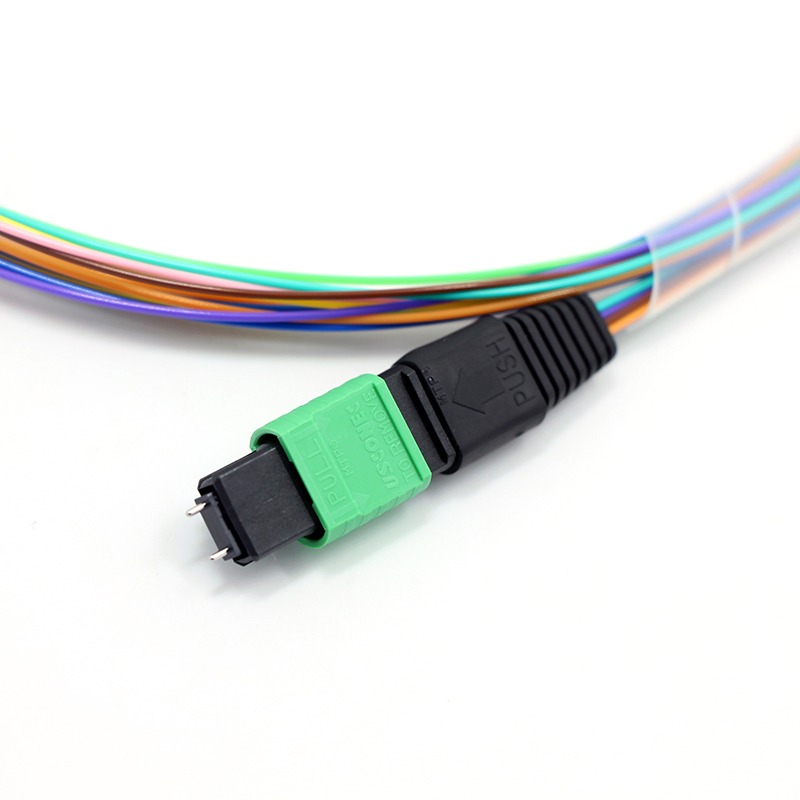

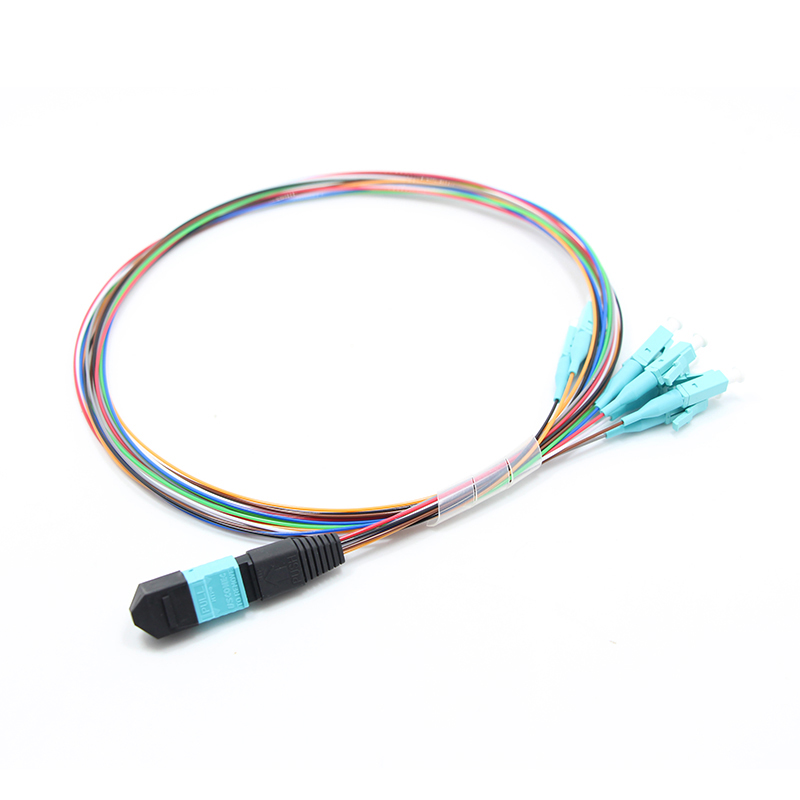

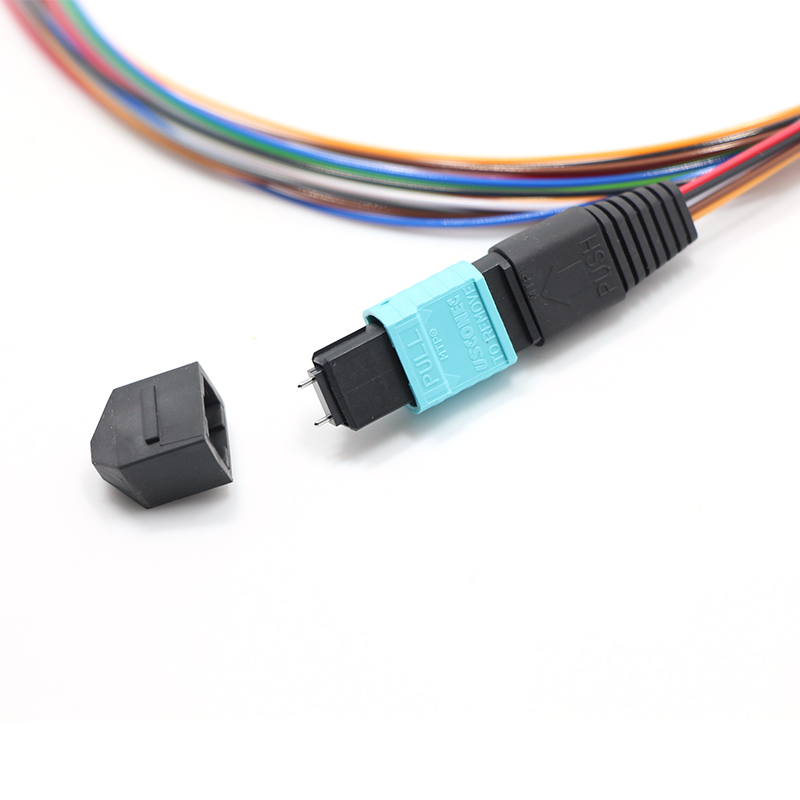

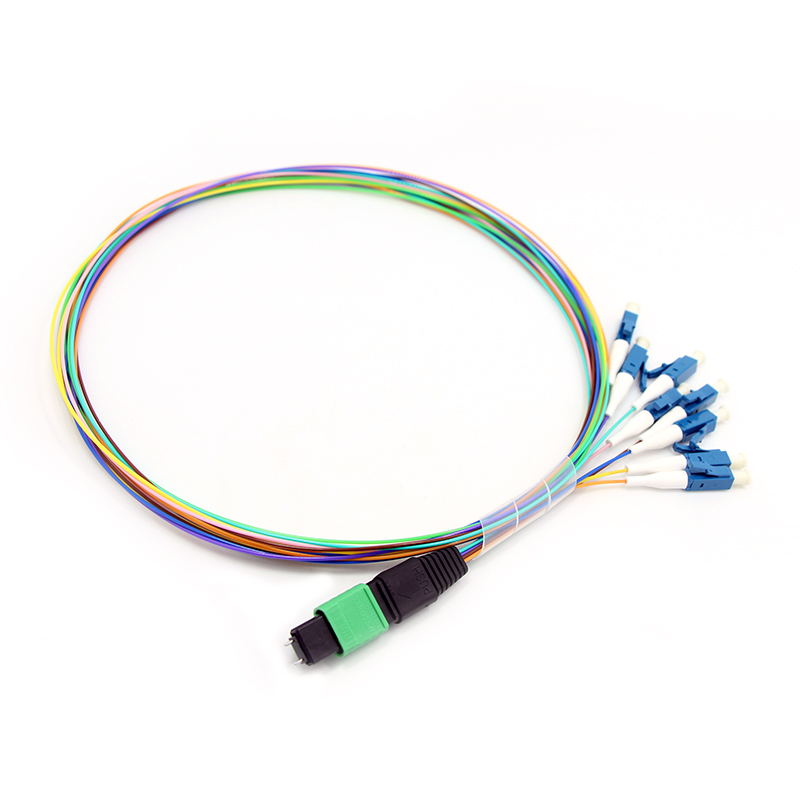

8F MTPĀ® (Male) -LC Fan-out 0.9mm 30cm cables
This series products are Designed specifically for seamless integration with MPO-LC LGX module cassettes, this 8F MTPĀ® (Male) to LC Fan-out cable provides an efficient and reliable high-density connectivity solution. Engineered for precision, the cable features a single 8-fiber MTPĀ® Male connector on one end, which fans out into individual LC connectors via 0.9mm tight-buffered fiber legs.
The 30cm breakout length is optimized to perfectly match the internal routing requirements of LGX cassettes, eliminating excess slack and ensuring a clean, organized, and space-saving installation within high-density data center racks. Factory-terminated and rigorously tested, this fan-out cable guarantees superior optical performance, low insertion loss, and stable signal transmission. It is the ideal choice for transitioning MTPĀ® trunk backbone assemblies to discrete LC patching systems, streamlining network deployments, and supporting high-speed 40G/100G Ethernet applications.
Description
8F MTPĀ® (Male) -LCĀ 0.9mm 30cm patch cableās Optical Specification:
| Spec items. | Insertion loss (IEC 61300-3-xx) | Return loss(IEC 61300-3-6 /TIA/EIA-455-107) | Standard |
| MTP SM | Standard MTPļ¼ā¤0.75dB(max), ā¤0.50dB(Typical) Elite MTP:ā¤0.35dB(max), ā¤0.20dB(Typical) |
APCā„60dB; PCā„50dB | IEC 61300-3-4 / TIA/EIA-455-34 |
| MTP MM | Standard MTPļ¼ā¤0.6dB(max), ā¤0.50dB(Typical) Elite MTP:ā¤0.35dB(max), ā¤0.20dB(Typical) |
PCā„50dB | IEC 61300-3-34 / TIA/EIA-455-61 |
| LC SM | ā¤0.3dB | APCā„60dB; PCā„50dB | IEC 61300-3-4 / TIA/EIA-455-34 |
| LC MM | ā¤0.3dB | PCā„50dB | IEC 61300-3-34 / TIA/EIA-455-61 |
Ā
End-Face 3D Interference Index
| Parameter | MTPĀ® | LC | Standard |
| Radius of Curvature, ROC | X: ā„ 2000 mm,Y: 50 mm | 10 ~ 25 mm (PC) 5 ~ 12 mm (APC) |
IEC 61300-3-30 |
| Fiber Height / Protrusion | -300 nm ~ +300 nm | Ā± 100 nm | IEC 61300-3-30 |
| Apex Offset | N/A | ā¤ 50 Ī¼m | IEC 61300-3-30 |
| Angle | 8.0Ā° Ā± 0.5Ā° (APC) | 8.0Ā° Ā± 0.5Ā° (APC) | IEC 61300-3-30 |
| Core Dip | “-200 nm ~ +300 nm (SM)” | N/A | IEC 61300-3-30 |
Ā
LC End-face Quality (SM)
| Zone | Range (Ī¼m) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Ā
LC End-face Quality (MM)
| Zone | Range (Ī¼m) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||

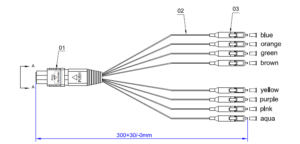

Cable Drawing
MTPĀ® Connector Types
| Connector | Fiber Channel |
 |
 |
| MTPĀ®Ā Female Connectors | 8 Fibers |
| Note: Female connector need to connect with male connector type. | |
MTPĀ® productsā Details& Standard:
| Connector | Reference | Housing Details |
| MTP Singlemode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (EliteĀ MTP) |
| MTP Multimode | IEC 61754-7 | OM3Ā PC: Aqua connectors+black boot (Standard Loss&EliteĀ MTP)
OM4 PC: MagentaĀ connectors+black boot (Standard Loss&EliteĀ MTP) |
- Meets IEC Standard IEC-61754-7;IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Application
- 40G SR4 / BiDi Links:Ā Connecting 40G QSFP+ transceivers (which use 8 fibers: 4 Tx, 4 Rx) to patch panels or cassette modules.
- 100G SWDM4:Ā Supporting Short Wavelength Division Multiplexing applications that utilize 8-fiber parallel optics.
- High-Density Patch Panels:Ā Ideal for connecting MPO trunk cables to 8-port or 16-port LC adapter panels in data centers.
