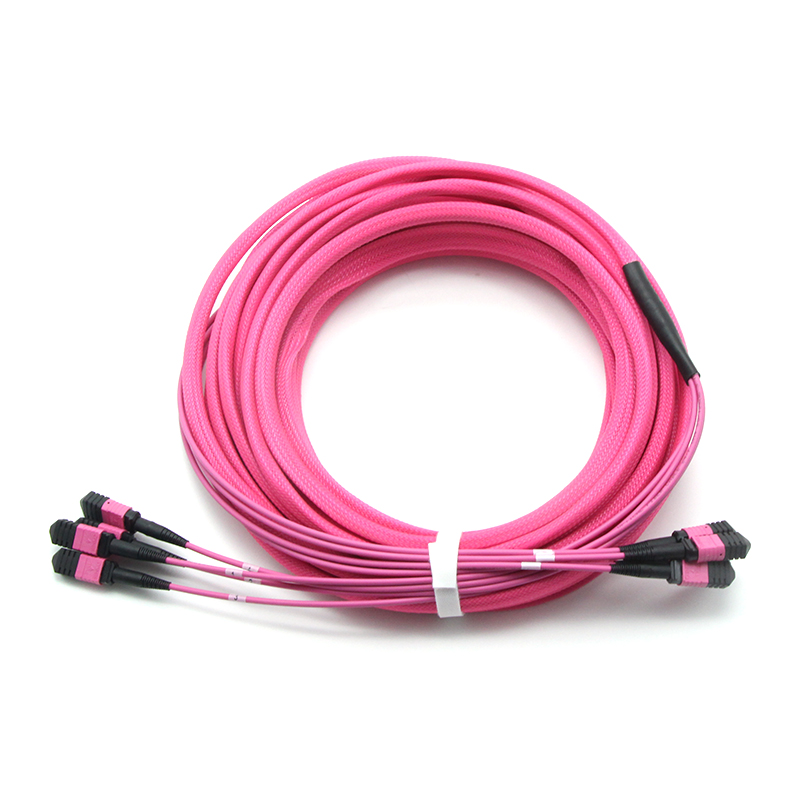

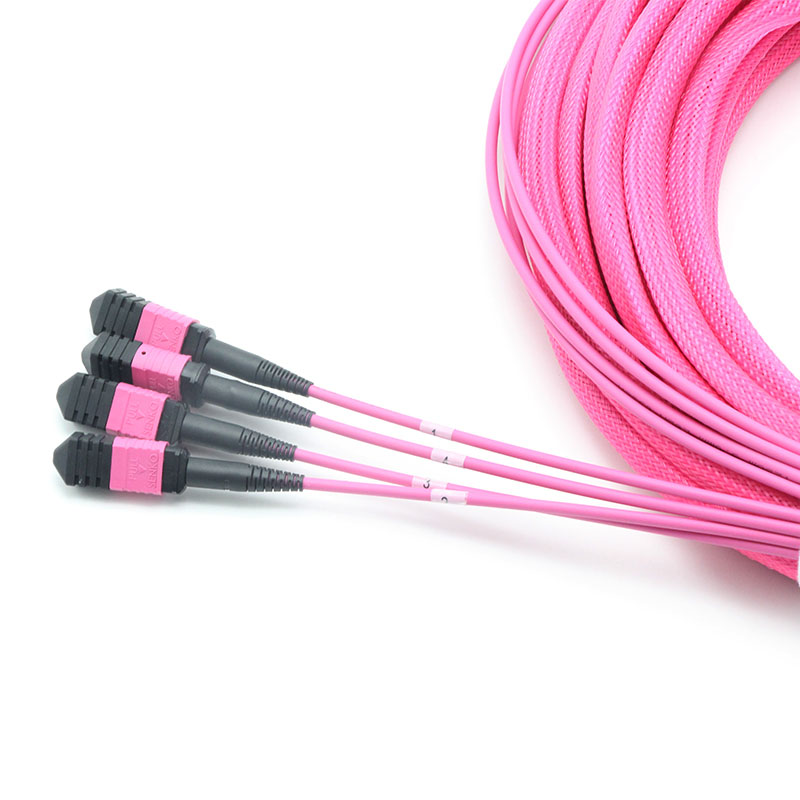

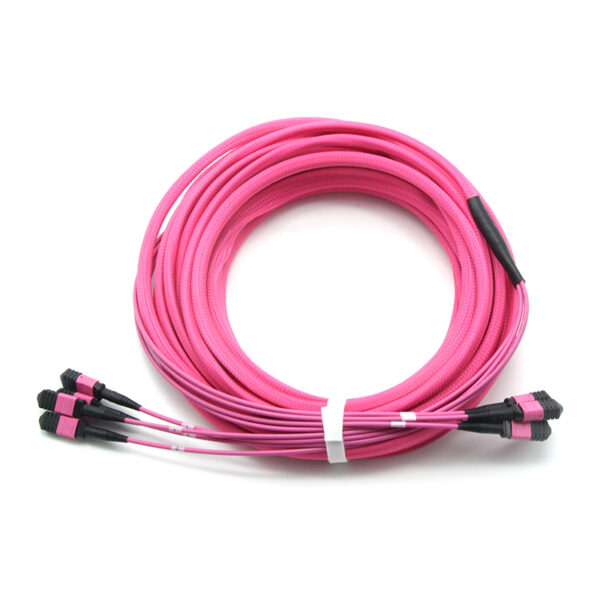

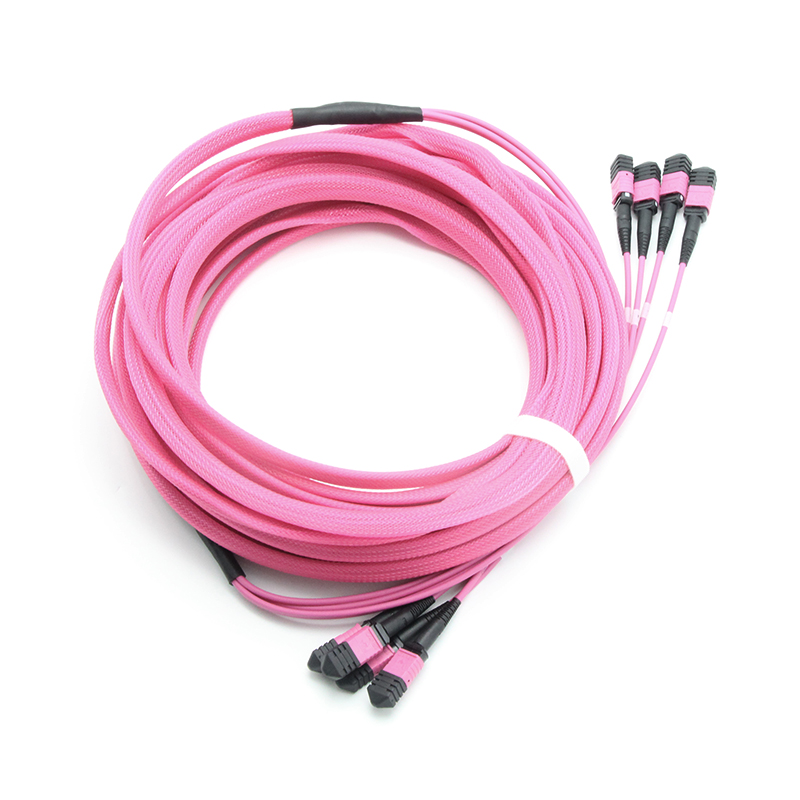

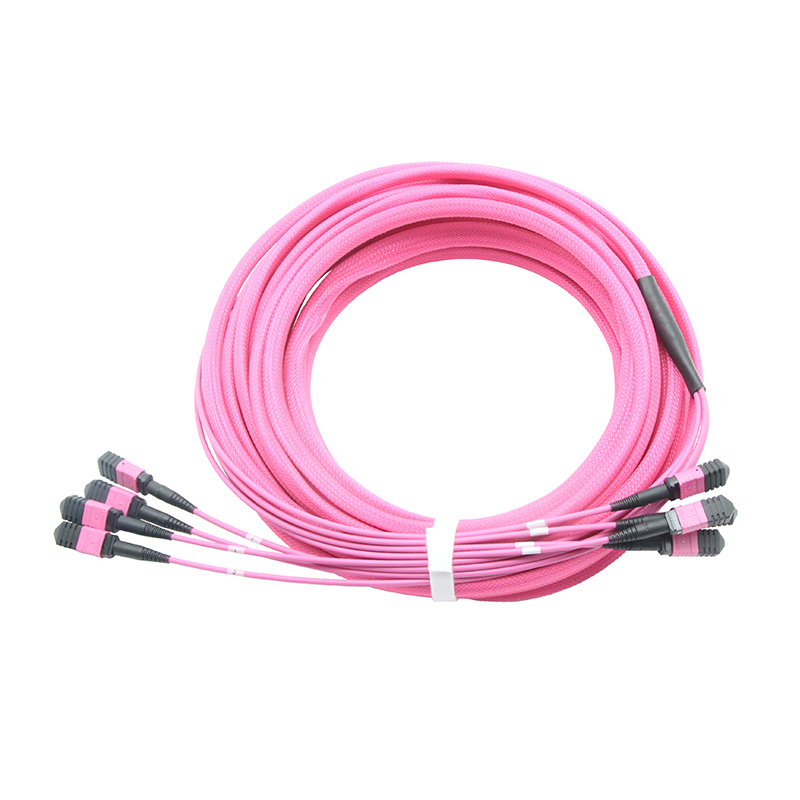

OM4 48F(4×12) MPO-MPO trunk cable with braid mesh
The 48-core MPO trunk cable is a compact high-density pre-terminated cabling solution, assembled with four pcs of standard 12-fiber MPO connectors at both ends. A Braid mesh cover those 4pcs of single MPO-MPO OM4 Patch cords. It adopts bend-insensitive OM3/OM4/OM5 multimode or OS2 single-mode fibers with LSZH flame-retardant jackets, featuring low insertion loss and excellent signal stability. With standardized high-precision ferrule alignment, it ensures long-term reliable connection. Optimized for medium-density network scenarios, it supports 40G/100G high-speed transmission. Widely used for data center cabinet interconnection, enterprise backbone links and small-scale computer room capacity expansion, enabling fast deployment and neat cable management.
Description
48F MPO trunk cable ’s Specification:
| Products | 48F(4x12F) MPO-MPO OM4 Trunk cable |
| Fiber Count | 48Fibers(4x12F) |
| Connector A | 12F OM4 MPO/PC female x 4pcs |
| Connector B | 12F OM4 MPO/PC female x 4pcs |
| Insertion Loss | Standard loss：≤0.5dB(max), ≤0.35dB(Typical)
Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) |
| Return Loss | MM PC≥25dB |
MPO End-Face 3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | \ | |
| ROC-Y(ABS) | 50mm | \ | ||
| Angle | Angle-X | -0.2° | -0.2° | |
| Angle-Y | APC | 7.85° | 8.15° | |
| PC | -0.2° | -0.2° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||

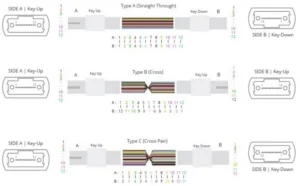

Pre-terminated MPO Technology-Polarity （12C MT Ferrule）
Polarity defines the directional correspondence between the transmit (Tx) port and receive (Rx) port of optical fiber links. It standardizes the signal transmission direction of fiber connections and guarantees accurate and effective end-to-end signal interconnection in optical cabling systems.
MPO products’ Details& Standard:
| Connector | Fiber Channel | |||
 |
 |
|||
| MPO female Connectors | 12 Fibers per one | |||
| Note: Female connector need to connect with male connector type. | ||||
| Connector | Reference | Housing Details | ||
| MPO Single Mode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MPO)
SM APC: Yellow connectors+black boot (Super low loss MPO) |
||
| MPO Multimode | IEC 61754-7 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
||

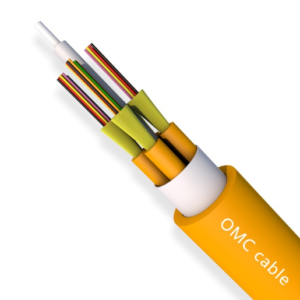

C Cable Parameters-48F(4x12F) Microfiber cable
| Fiber number | 48F (4x12F) |
| Fiber Mode | OM4 50/125μm Bend Insensitive Fiber |

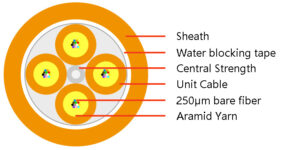

| Cable structure | 1+4 Structure |
| Subunit diameter (mm) | 2.9±0.1 |
| Cable diameter(mm) | 9.0±0.3 |
| Max. tensile load | Short term: 600N/ Long term :300N |
| Max. crush resistance | Short term: 500N/100mm；Long term:100N/100mm |
| Attenuation | ≤0.35dB/km at 1310nm, ≤0.21dB/km at 1550nm |
| Temperature rating Operation&Storage | -20°C ~70°C |
Flame retardant Performance
| Cable material | Standard |
| LSZH | CPR : B2ca, Cca, Dca, Eca,Fca |
| OFNP&OFNR | UL-94V0 |
Cable Jacket Material
| Item | OFNP Plenum | LSZH | OFNR Riser |
| Smoke emission | Extremely low | Very low | Heavy black smoke |
| Toxic halogen gas | None | Zero | High (chloride) |
| Fire resistance rank | Highest | Medium | Medium-low |
| Plenum air space use | Allowed | Not UL certified, restricted | Strictly prohibited |
| Vertical riser shaft | Supported | Supported | Optimized for riser shafts |
| Rigidity & hardness | Stiff, firm texture | Soft, flexible | Moderate flexibility |
| Cost | Highest | Mid-range | Lowest |
Custom Pulling Eye.
The pulling eye safeguards MPO trunk connectors throughout cable laying and dismantling processes, especially in confined or inaccessible installation areas, by completely shielding the fiber breakout section and diverting tensile stress from the cable assembly to the protective sleeve.
Application

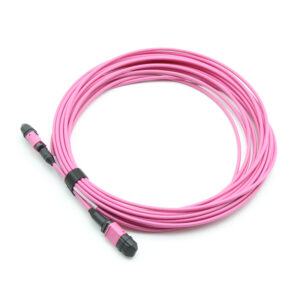

12F OM4 Multimode MPO Patch Cord
Bandwidth: Delivers 4700 MHz·km bandwidth at 850nm, with lower attenuation and higher bandwidth capacity compared with OM3 for enhanced high-speed performance.
Transmission Rate & Reach: Supports 40G SR4 up to 150m, 100G SR4 up to 100m, 400G SR4.2 up to 70m, and 800G SR8 up to 50m for stable short-range transmission.
Application Scenarios: Serves as the mainstream cabling solution for high-density cloud data centers, cabinet jumper wiring, and large-scale short-range 40G/100G/400G optical interconnection.
