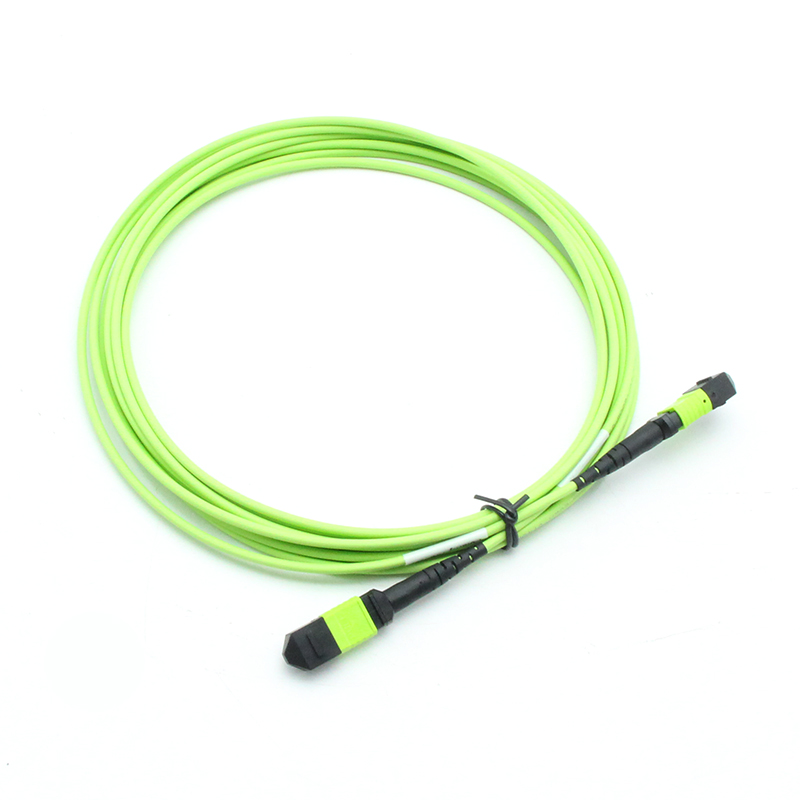

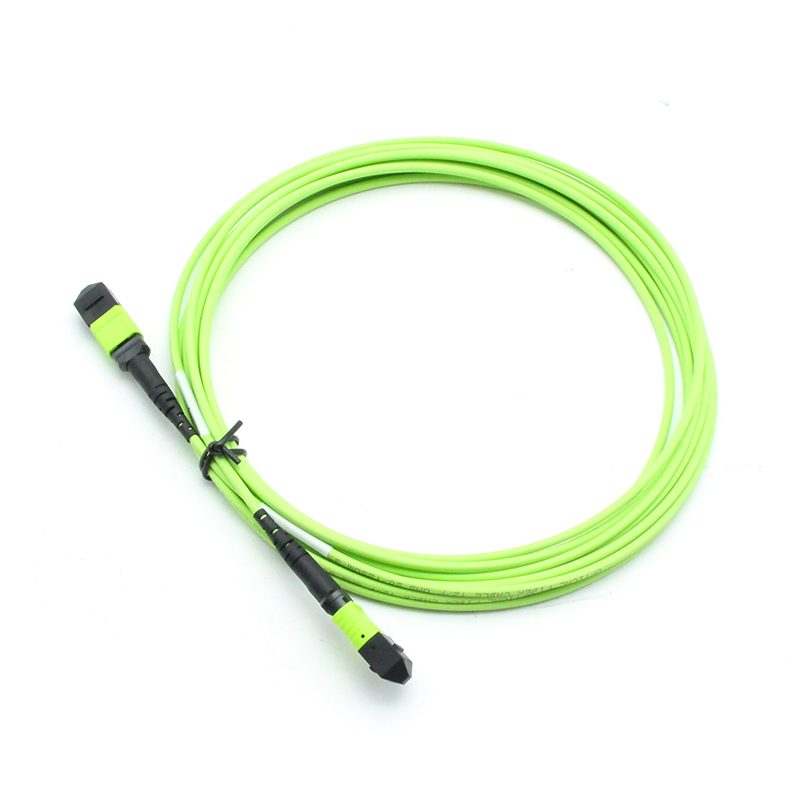

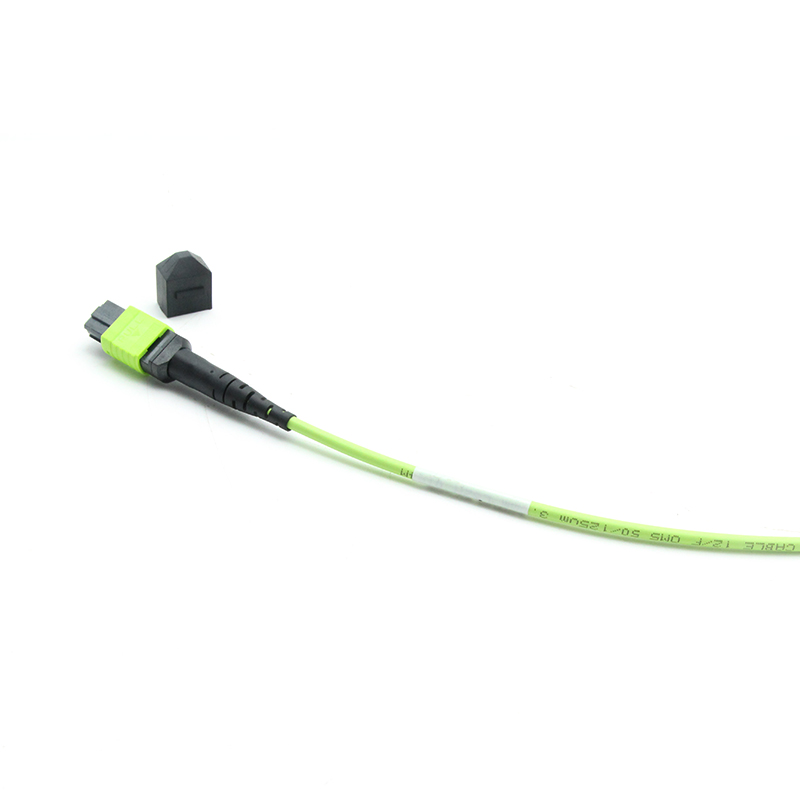

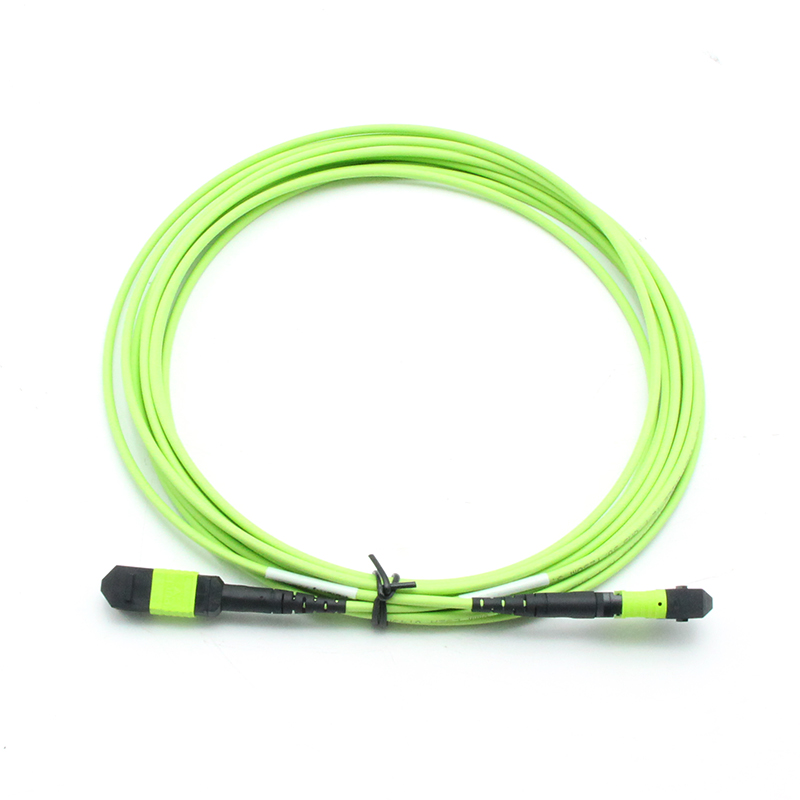

OM5 12cores MTPĀ®(Female)-MTPĀ®(Female) Jumper cable
12-Fiber MTPĀ® OM5 Patch Cord for AI High-Speed Computing, Specially engineered for next-gen 800G/1.6T AI GPU clusters, this 12-core MTPĀ® OM5 jumper features wideband multimode fiber supporting SWDM 4-wavelength transmission. It achieves 150m stable transmission under 400G SR4, far exceeding OM4ās distance limit, greatly reducing fiber quantity and cabinet space cost.
Low-loss MTPĀ® UPC connectors guarantee consistent signal performance under heavy parallel traffic. Bend-resistant LSZH lime green jacket enables neat dense wiring with low smoke zero halogen safety.
Compliant with TIA-568 Type-B polarity, all assemblies undergo strict optical inspection. Custom pull tabs, male/female ends and lengths offered for spine-leaf data center fabric.
All of FDCās MTPĀ®Ā Connectors are fromĀ USconec.Ā At the same timeļ¼FDCās MTPĀ®Ā cable are available with fiber brands of Corning,YOFC,Fiberhome, Jfiber,Fiberhome,ZTT,etc. LSZH,OFNP,OFNR Jacket materialā¦
Description
MTPĀ® Connector Types
| Connector | Fiber Channel |
 |
 |
| MTPĀ®Ā Female Connectors | 12 Fibers |
| Note: Female connector need to connect with male connector type. | |
MTPĀ® productsā Details& Standard:
| Connector | Reference | Housing Details |
| MTPĀ® Singlemode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (EliteĀ MTP) |
| MTPĀ® Multimode | IEC 61754-7 | OM3Ā PC: Aqua connectors+black boot (Standard Loss&EliteĀ MTP)
OM4 PC: MagentaĀ connectors+black boot (Standard Loss&EliteĀ MTP) |
- Meets IEC Standard IEC-61754-7;IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Optical Specification:
| Products | 12F MTPĀ®-MTPĀ® Jumper cable. |
| Connector A | 12F MM MTPĀ®Ā /PCĀ female OM5 |
| Connector B | 12F MM MTPĀ®Ā /PCĀ female OM5 |
| Insertion Loss | Standard lossļ¼ā¤0.75dB(max), ā¤0.35dB(Typical)
Super Low lossļ¼ā¤0.35dB(max), ā¤0.20dB(Typical) |
| Return Loss | MM PCā„25dB |
Ā
3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | \ | |
| ROC-Y(ABS) | 50mm | \ | ||
| Angle | Angle-X | -0.2Ā° | -0.2Ā° | |
| Angle-Y | APC | 7.85Ā° | 8.15Ā° | |
| PC | -0.2Ā° | -0.2Ā° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||
Ā
12F Pre-terminatedĀ MTPĀ® Technology-Polarity
Ā
Cable Parameters-12FĀ MicrofiberĀ cable
| Item | Contents | Unit | Data |
| Fiber type | / | / | OM5 |
| Fiber Count | / | piece | 12 |
| Cable diameter | / | mm | 2.0Ā±0.2&3.0Ā±0.2 |
| Strength member | Material | / | Aramid Yarn |
| Max. tensile load | / | / | Short term:150N;Ā Long term:80N |
| Outer sheath | material | / | LSZH,Ā Plenum(OFNP),Riser(OFNR) |
| TemperatureĀ range | -20ā ~ +70ā |
Ā
Flame retardant Performance
| CableĀ material | Standard |
| LSZH | CPR : B2ca, Cca, Dca, Eca,Fca |
| OFNP&OFNR | UL-94V0 |
Ā
Cable Jacket Material
Ā
| Item | OFNP Plenum | LSZH | OFNR Riser |
| Smoke emission | Extremely low | Very low | Heavy black smoke |
| Toxic halogen gas | None | Zero | High (chloride) |
| Fire resistance rank | Highest | Medium | Medium-low |
| Plenum air space use | Allowed | Not UL certified, restricted | Strictly prohibited |
| Vertical riser shaft | Supported | Supported | Optimized for riser shafts |
| Rigidity & hardness | Stiff, firm texture | Soft, flexible | Moderate flexibility |
| Cost | Highest | Mid-range | Lowest |
Ā
Length Tolerance
Ā
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5%Ā xĀ L/-0 |
Application
Application:
12F OM5 Wideband Multimode MTPĀ® Patch Cord
Bandwidth: Offers 4700 MHzĀ·km bandwidth at 850nm and covers a wide wavelength band of 850ā950nm, specially designed for SWDM4 multi-wavelength transmission, fully backward compatible with OM3 and OM4 systems.
Transmission Rate & Reach: Supports 40G SR4 up to 150m, 40G SWDM4 up to 440m, 100G SR4 / SWDM4 up to 150m, 400G SR4.2 up to 150m, and 800G SR8 up to 100m, delivering the best 800G short-reach performance among multimode fibers.
Ā
Application Scenarios: Perfect for next-generation high-speed data centers, AI computing clusters, and SWDM-based multi-wavelength network systems. It supports network upgrade while being compatible with existing legacy multimode cabling to save project costs.
