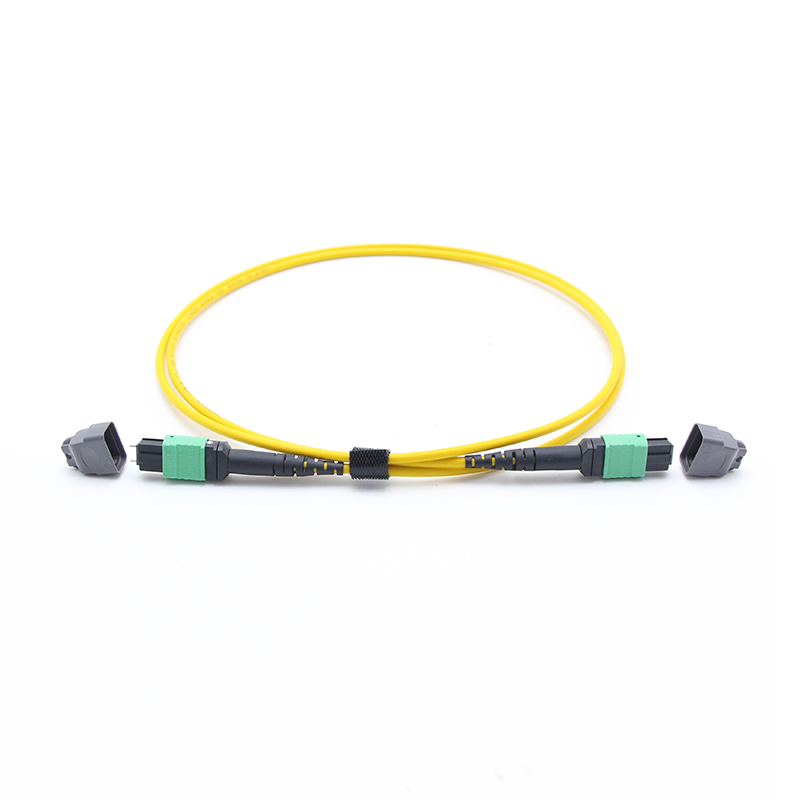

12F OS2 9/125um MTPĀ®(F)-MTPĀ®(M) Jumper cable

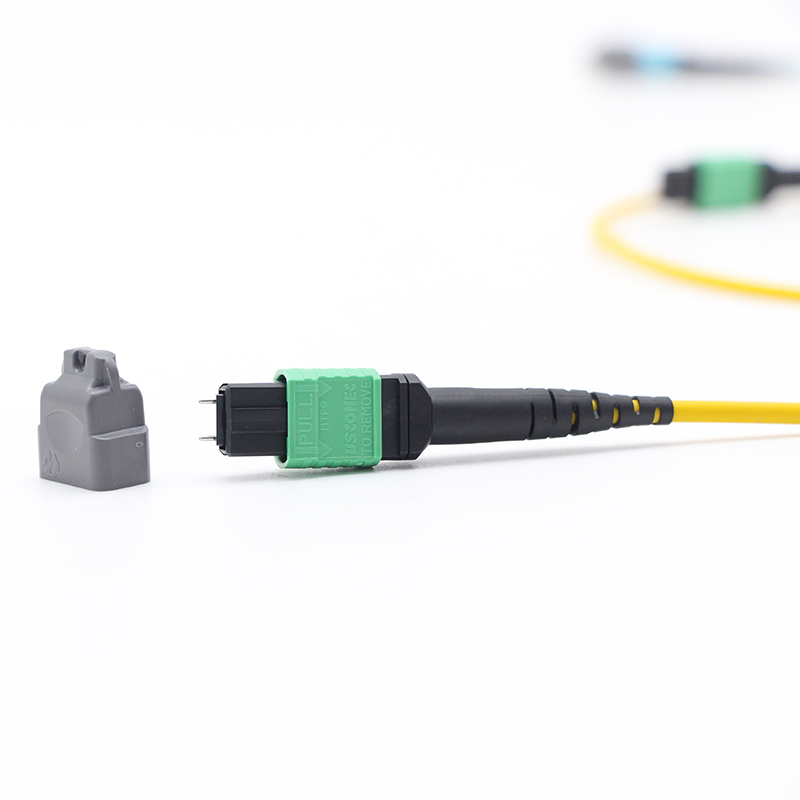

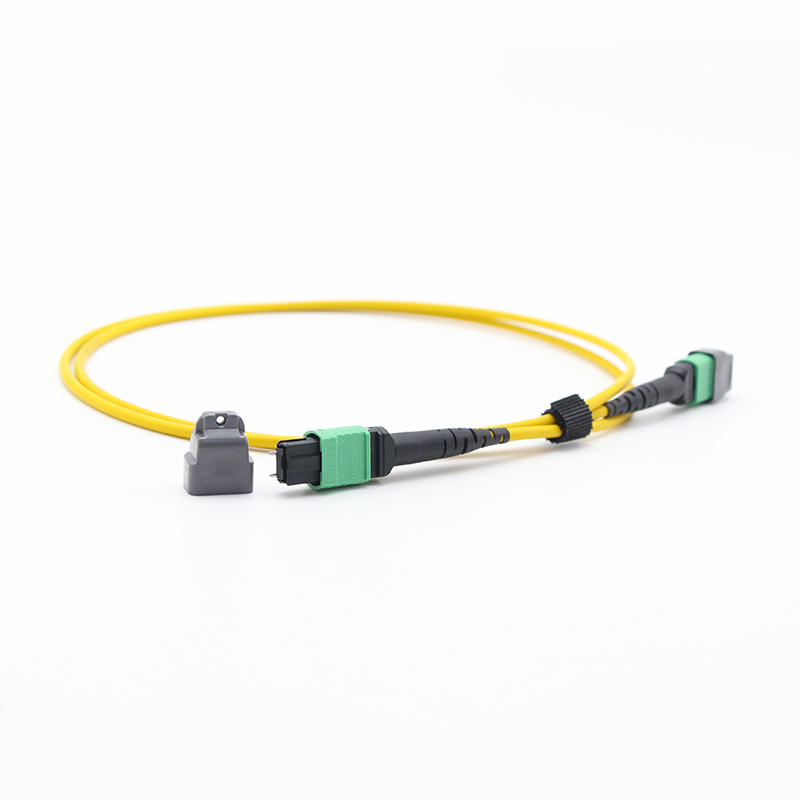

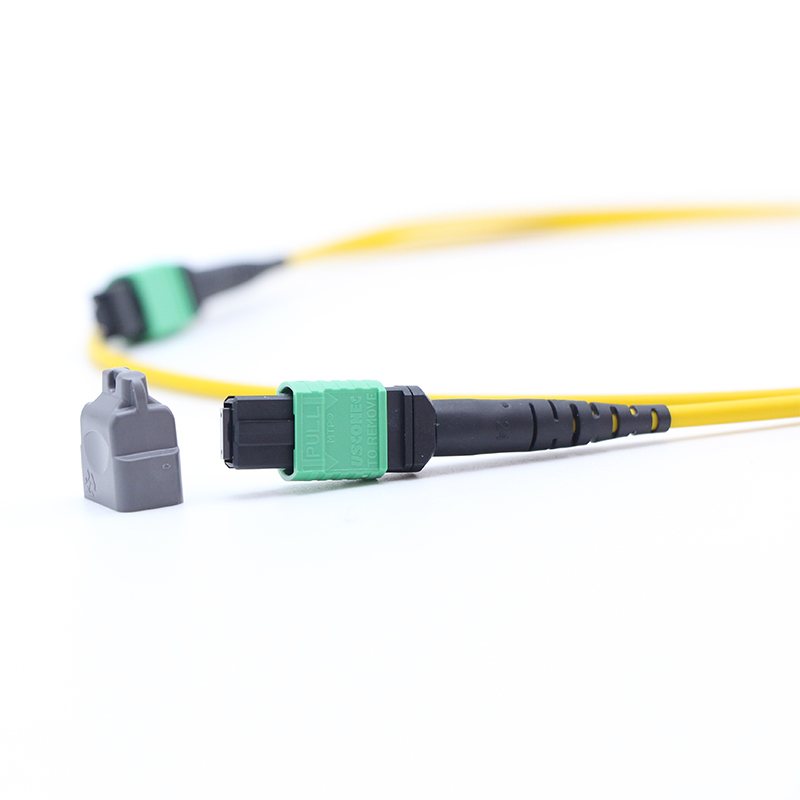

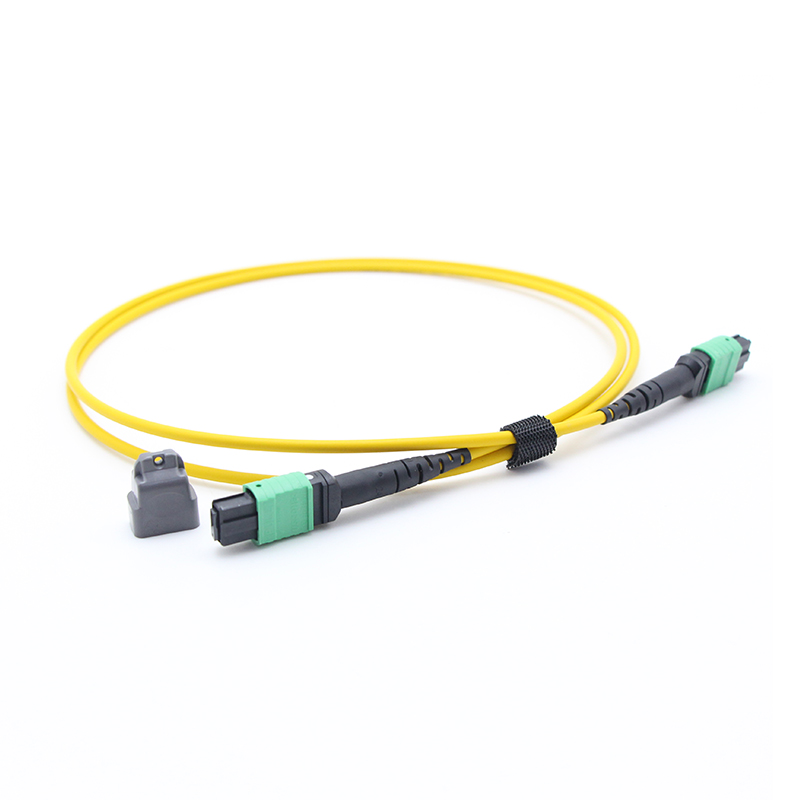

12-Core Single Mode MTPĀ® Jumper cable.Ā Ā This 12-fiber single-mode MTPĀ® Jumper cable.Ā uses G.652D/G.657A2 low-bend-loss single-mode fiber paired with high-precision polished MTPĀ® UPC/APC connectors, delivering ultra-low insertion loss and high return loss for long-distance optical transmission.
Compliant with TIA-568 standard Type-B polarity, the yellow LSZH/PVC jacket enables easy single-mode identification. G.657A2 fiber minimizes signal attenuation during tight cabinet routing. It perfectly matches 10G/25G/100G/400G LR4/FR4 transceivers, supporting kilometer-level transmission for campus backbone, metropolitan networks and long-distance data center interconnections.
All of FDCās MTPĀ®Ā Connectors are fromĀ USconec.Ā At the same timeļ¼FDCās MTPĀ® cable are available with fiber brands of Corning,YOFC,Fiberhome, Jfiber,Fiberhome,ZTT,etc. LSZH,OFNP,OFNR Jacket materialā¦Every cable undergoes full IL and RL optical testing. Custom male/female pins, polarity, lengths and end faces are available, ideal for high-density ODF, switch and cross-rack cabling.
Description
MTPĀ® Connector Types
| Connector | Fiber Channel |
 |
 |

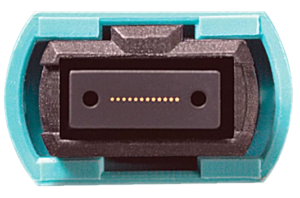

| MTPĀ®Ā Female Connectors | 12 Fibers |
| Note: Female connector need to connect with male connector type. | |
MTPĀ® productsā Details& Standard:
| Connector | Reference | Housing Details |
| MTPĀ®Ā Singlemode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (EliteĀ MTP) |
| MTPĀ®Ā Multimode | IEC 61754-7 | OM3Ā PC: Aqua connectors+black boot (Standard Loss&EliteĀ MTP)
OM4 PC: MagentaĀ connectors+black boot (Standard Loss&EliteĀ MTP) |
- Meets IEC Standard IEC-61754-7;IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Optical Specification:
| Products | 12F MTPĀ®-MTPĀ® Jumper cable. |
| Connector A | 12F SM MPO/APCĀ female |
| Connector B | 12F SM MPO/APCĀ female |
| Insertion Loss | Standard lossļ¼ā¤0.75dB(max), ā¤0.35dB(Typical)
Super Low lossļ¼ā¤0.35dB(max), ā¤0.20dB(Typical) |
| Return Loss | SM APCā„60dB |
Ā
3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | \ | |
| ROC-Y(ABS) | 50mm | \ | ||
| Angle | Angle-X | -0.2Ā° | -0.2Ā° | |
| Angle-Y | APC | 7.85Ā° | 8.15Ā° | |
| PC | -0.2Ā° | -0.2Ā° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||
Ā

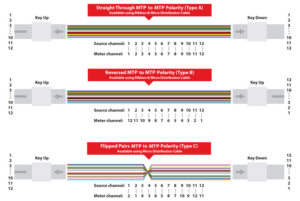

12F Pre-terminatedĀ MTPĀ® Technology-Polarity

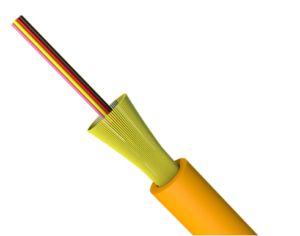

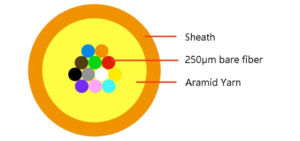

Cable Parameters-12FĀ MicrofiberĀ cable
| Item | Contents | Unit | Data |
| Fiber type | / | / | OS2 9/125um |
| Fiber Count | / | piece | 12 |
| Cable diameter | / | mm | 2.0Ā±0.2&3.0Ā±0.2 |
| Strength member | Material | / | Aramid Yarn |
| Max. tensile load | / | / | Short term:150N;Ā Long term:80N |
| Outer sheath | material | / | LSZH,Ā Plenum(OFNP),Riser(OFNR) |
| TemperatureĀ range | -20ā ~ +70ā |
Ā
Flame retardant Performance
| CableĀ material | Standard |
| LSZH | CPR : B2ca, Cca, Dca, Eca,Fca |
| OFNP&OFNR | UL-94V0 |
Ā
Cable Jacket Material
Ā
| Item | OFNP Plenum | LSZH | OFNR Riser |
| Smoke emission | Extremely low | Very low | Heavy black smoke |
| Toxic halogen gas | None | Zero | High (chloride) |
| Fire resistance rank | Highest | Medium | Medium-low |
| Plenum air space use | Allowed | Not UL certified, restricted | Strictly prohibited |
| Vertical riser shaft | Supported | Supported | Optimized for riser shafts |
| Rigidity & hardness | Stiff, firm texture | Soft, flexible | Moderate flexibility |
| Cost | Highest | Mid-range | Lowest |
Ā
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5%Ā xĀ L/-0 |
Application
Application:
12F Single-Mode (SM) MTPĀ® Patch Cord
Bandwidth: Features ultra-low dispersion and unlimited bandwidth, delivering consistent and reliable long-distance optical transmission performance.
Transmission Rate & Reach: Supports 40G LR4, 100G LR4, 400G LR4 and 800G DR8 parallel optical transmission; 40G/100G/400G reach up to 10km, 800G DR8 reach up to 500m.
Application Scenarios: Ideal for long-haul network deployment, including inter-data center connections, cross-building backbone links, campus long-distance cabling and outdoor telecom transmission systems.
