24F MPO(Male) -LC Fan-out 0.9mm 30cm cables
24Cores MPO (Male) to LC 0.9mm 30cm are designed for MPO-LC LGX module cassettes are terminated with MPO and LC connector on each end. Available in Single Mode (OS2), OM3, and OM4 ，OM5 fiber types, it supports diverse network speeds from 10G to 400G.

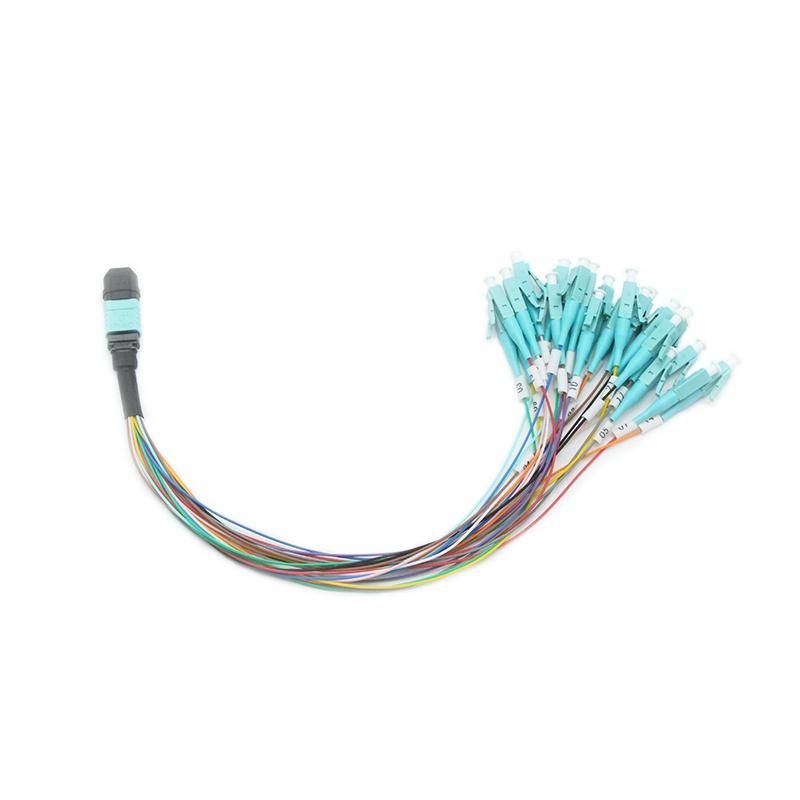

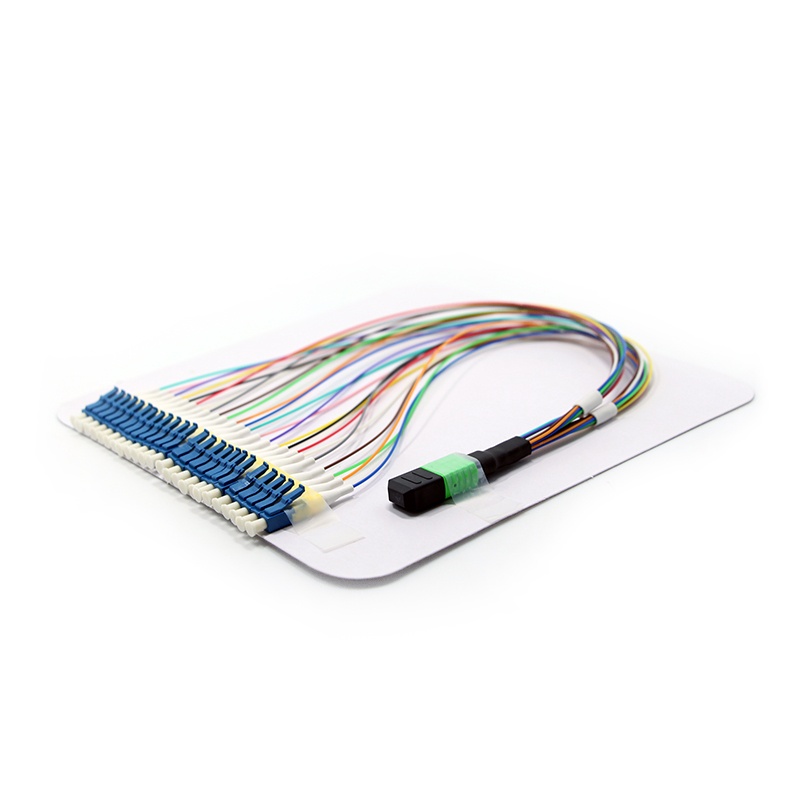

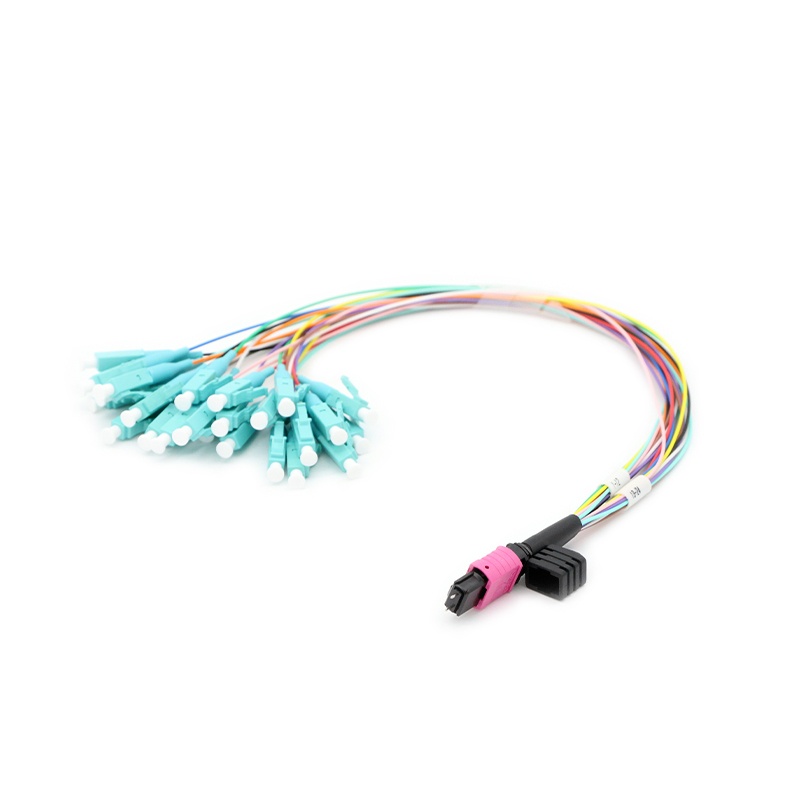

Connector Configuration: One end features a precision 24-fiber MPO Male connector (Green housing for SM/APC, Aqua for OM3，Magenta for OM4, Lim green for OM5), breaking out into 24 individual LC connectors(Blue housing for SM/UPC, Aqua for OM3，Magenta for OM4，Lim green for OM5).
High-Density Design: Consolidates 24 fibers into a single MPO interface, significantly reducing cable clutter and improving airflow compared to traditional duplex patch cords.
Superior Performance: Engineered for low insertion loss and high return loss, ensuring reliable signal transmission across 850nm (Multimode) and 1310/1550nm (Single Mode) wavelengths.
Flexible & Durable: The 0.9mm tight-buffered construction offers excellent bend resistance and durability, making it ideal for tight routing spaces within server cabinets.
Description
MPO-LC/SC/FC/ST Fan-out 0.9mm 30cm patch cable’s Specification:
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| Insertion loss (MPO)
(IEC 61300-3-34) |
Standard loss：≤0.75dB(max), ≤0.50dB(Typical)
Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss：≤0.6dB(max), ≤0.50(Typical)
Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Insertion loss (LC/SC/FC/ST)
(IEC 61300-3-6) |
≤0.3dB | ≤0.3dB |
| Return loss(MPO) | ≥60dB（8degree polishing） | ≥25dB |
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
MPO End-Face 3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | \ | |
| ROC-Y(ABS) | 50mm | \ | ||
| Angle | Angle-X | -0.2° | -0.2° | |
| Angle-Y | APC | 7.85° | 8.15° | |
| PC | -0.2° | -0.2° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||
LC/SC/FC/ST End-Face Geometry 3D Interference Index
| Items | Connector | PC End-face | APC End-face |
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm | |
| Apex Offset | ≤50 um | ||
| Fiber Spherical Height | +/- 100 nm | ||
| Angular Offset | —— | 8°± 0.5° | |
LC/SC/FC/ST End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
LC/SC/FC/ST End-face Quality (MM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||

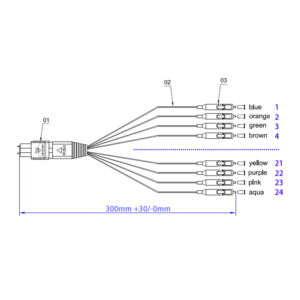

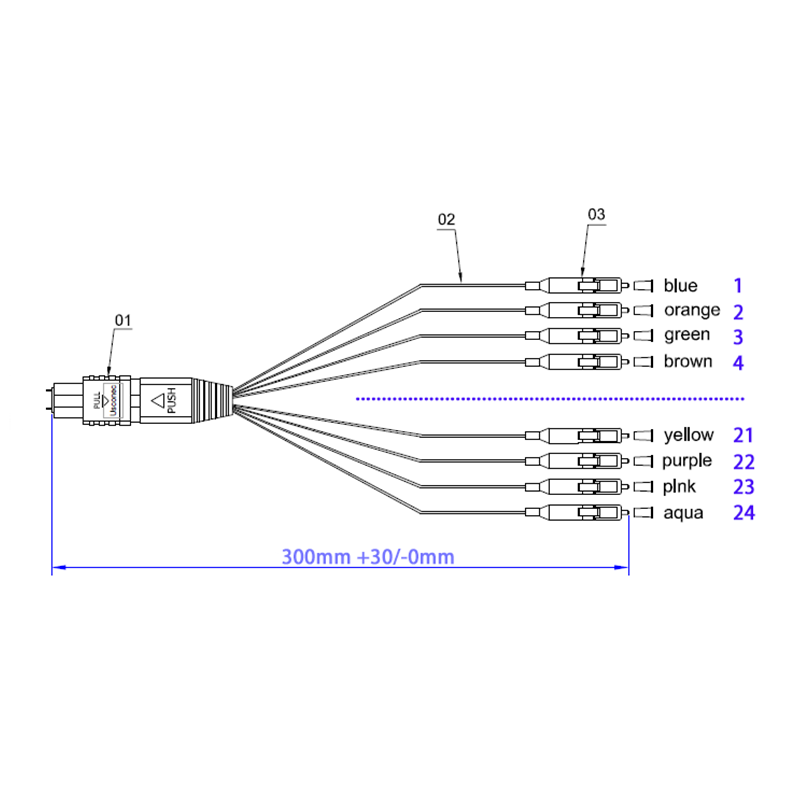

Cable Drawing
MPO Connector’s Details:
| Connector | Fiber Channel |
 |
 |
| MPO Male Connectors | 8 Fibers |
| Note: Female connector need to connect with male connector type. | |
| Connector | Reference | Housing Details |
| MPO Singlemode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MPO)
SM APC: Yellow connectors+black boot (Super low loss MPO) |
| MPO Multimode | IEC 61754-7 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
- Meets IEC Standard IEC-61754-7;IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Application
- Data Center High-Speed Migration: Essential for upgrading legacy 10G networks to 40G (QSFP+) and 100G (QSFP28) architectures. The MPO end connects to the high-speed switch, while the LC ends distribute signals to break-out modules or legacy equipment.
- Server Rack Interconnects: The 30cm length is specifically designed for “Top-of-Rack” (ToR) switching environments, connecting patch panels to servers without excess cable clutter, improving airflow and cooling efficiency.
- Fiber-to-the-Antenna (FTTA): In telecom infrastructure, these cables connect remote radio heads to baseband units, where space is limited and durability is required.
- Test and Measurement: Ideal for lab environments where technicians need to quickly adapt MPO-based test equipment to standard LC interfaces for debugging optical links.
