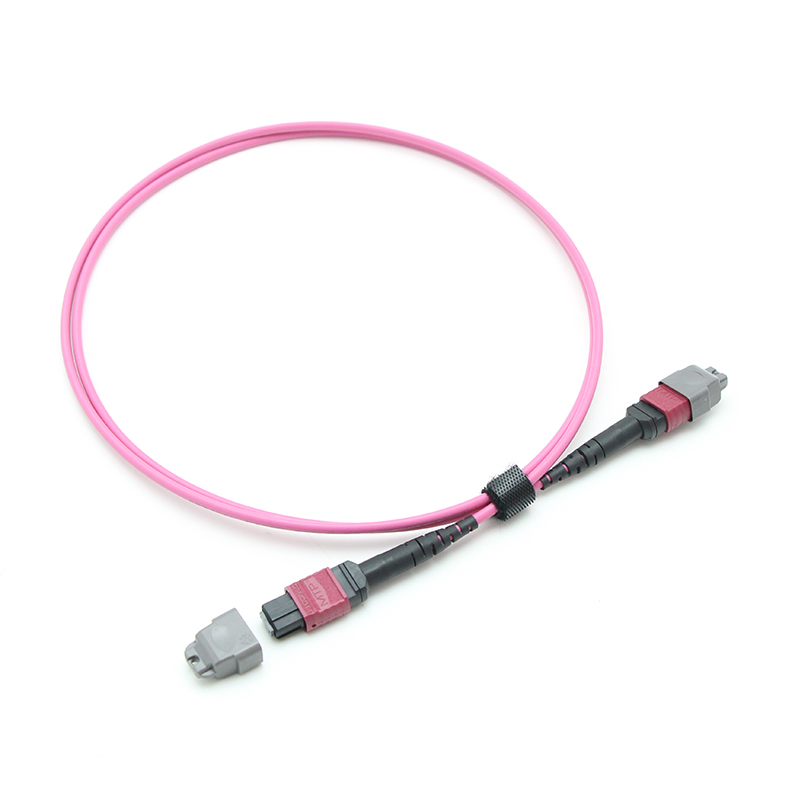

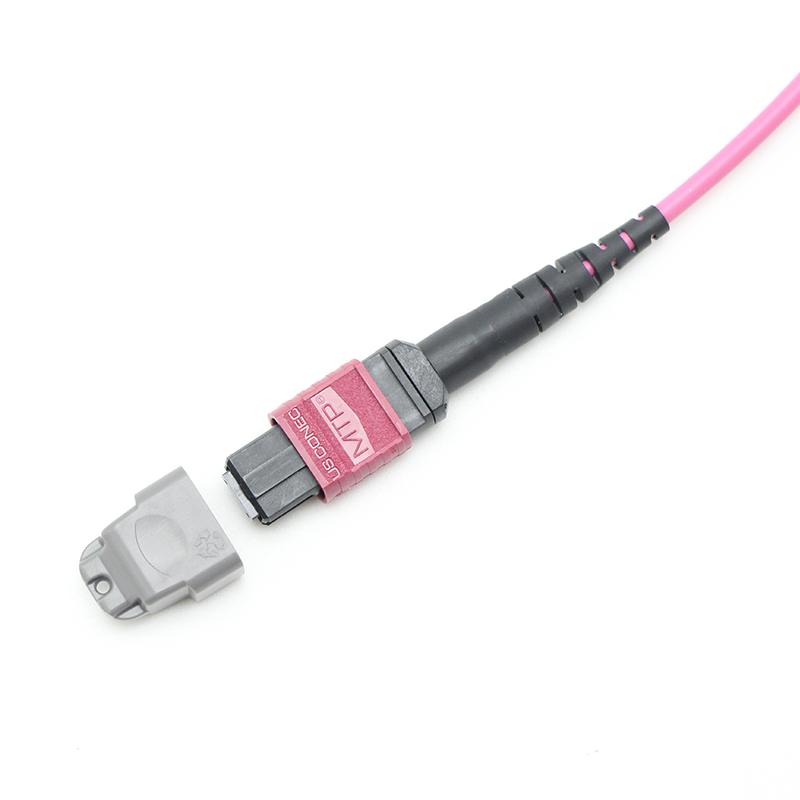

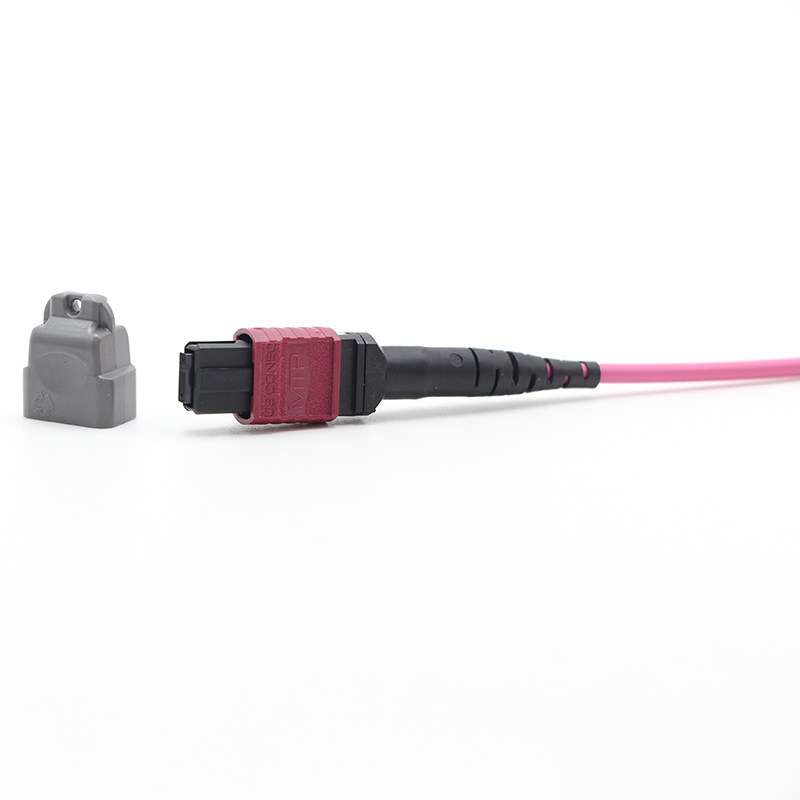

24F OM4 MTPĀ®- MTPĀ® Jumper cable
This 24-fiber OM4 MTP jumper is a high-density multimode cabling solution optimized for high-speed data center parallel transmission. It adopts laser-optimized 50/125Ī¼m OM4 bend-insensitive fiber paired with precision-polished MTPĀ® UPC connectors, delivering stable low insertion loss performance.
The magenta LSZH jacket allows quick OM4 identification and satisfies EU CPR fire safety requirements. Supporting Type A/B/C customizable polarity, it fully matches 40G/100G/400G/800G SR4 optical modules with up to 100m transmission distance at 850nm.
The 24-fiber design drastically cuts cabinet cable clutter and improves airflow. Every cable undergoes full IL & RL optical testing before delivery. Custom male/female pins, pull tabs and lengths are available, perfectly suited for spine-leaf architecture, AI GPU clusters and high-density ODF cross connections.
All of FDCās MTPĀ®Ā Connectors are fromĀ USconec.Ā At the same time,FDCās MTPĀ®Ā cable are available with fiber brands of Corning,YOFC,Fiberhome, Jfiber,Fiberhome,ZTT,etc. LSZH,OFNP,OFNR Jacket materialā¦
Description

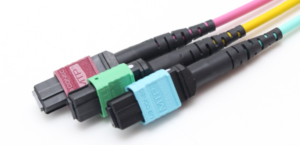

MPO Connector Types
| Connector | Fiber Channel |
 |
 |
| MTPĀ® Female Connectors | 24 Fibers |
| Note: Female connector need to connect with male connector type. | |
MTPĀ® productsā Details& Standard:
| Connector | Reference | Housing Details |
| MTPĀ® Singlemode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (EliteĀ MTP) |
| MTPĀ® Multimode | IEC 61754-7 | OM3Ā PC: Aqua connectors+black boot (Standard Loss&EliteĀ MTP)
OM4 PC: MagentaĀ connectors+black boot (Standard Loss&EliteĀ MTP) |
Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3

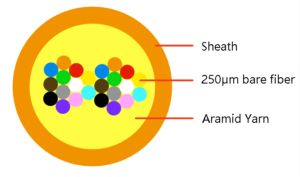

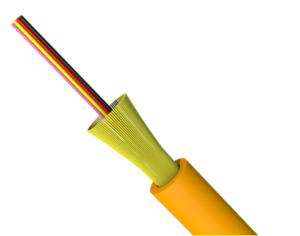

Cable Parameters-24FĀ MicrofiberĀ cable
| FiberĀ Count | OD(mm) | Minimum allowable
Tensile Strength (N) |
minimum allowable
Crush Load(N/100mm) |
Minimum Bending
Radius(MM) |
| 24 | 3.0Ā±0.15 | Short-term: Ā 150ļ¼
Long-term: Ā 80 |
Short-term: Ā 500ļ¼
Long-term:Ā Ā 150 |
Staticļ¼10D
Dynamicļ¼20D |
Ā
Optical Specification:
| Spec items. | Single mode (APC 8-degree polished) | MultimodeĀ (PC Flat polish) |
| Insertion loss (MPO)
(IEC 61300-3-34) |
Standard MTPļ¼ā¤0.75dB(max), ā¤0.35dB(Typical)
Elite MTPļ¼ā¤0.35dB(max), ā¤0.20dB(Typical) |
Standard MTPļ¼ā¤0.6dB(max), ā¤0.35(Typical)
Elite MTPļ¼ā¤0.35dB(max) , ā¤0.20dB(Typical) |
| Return loss(MPO) | ā„60dBļ¼8degree polishingļ¼ | ā„25dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ā¤0.2dB | |
| Tensile strength | >70N | |
| OperatingĀ Temperature | -40 to + 85Ā°C | |
Ā
3D Interference Index
Ā
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | \ | |
| ROC-Y(ABS) | 50mm | \ | ||
| Angle | Angle-X | -0.2Ā° | -0.2Ā° | |
| Angle-Y | APC | 7.85Ā° | 8.15Ā° | |
| PC | -0.2Ā° | -0.2Ā° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||
Ā
Pre-terminatedĀ MTPĀ Technology-Polarity
24F MTP:
Length Tolerance
Ā
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5%Ā xĀ L/-0 |
Application
Application:
24F OM4 Multimode MTPĀ Patch Cord
Bandwidth: Delivers 4700 MHzĀ·km bandwidth at 850nm, with lower attenuation and higher bandwidth capacity compared with OM3 for enhanced high-speed performance.
Transmission Rate & Reach: Supports 40G SR4 up to 150m, 100G SR4 up to 100m; does not support 400G, 800G and 1.6T transmission.
Application Scenarios: Serves as the mainstream cabling solution for high-density cloud data centers, cabinet jumper wiring, and large-scale short-range 40G/100G optical interconnection.
