8F MPO(Male) -LC Fan-out 0.9mm 30cm cables

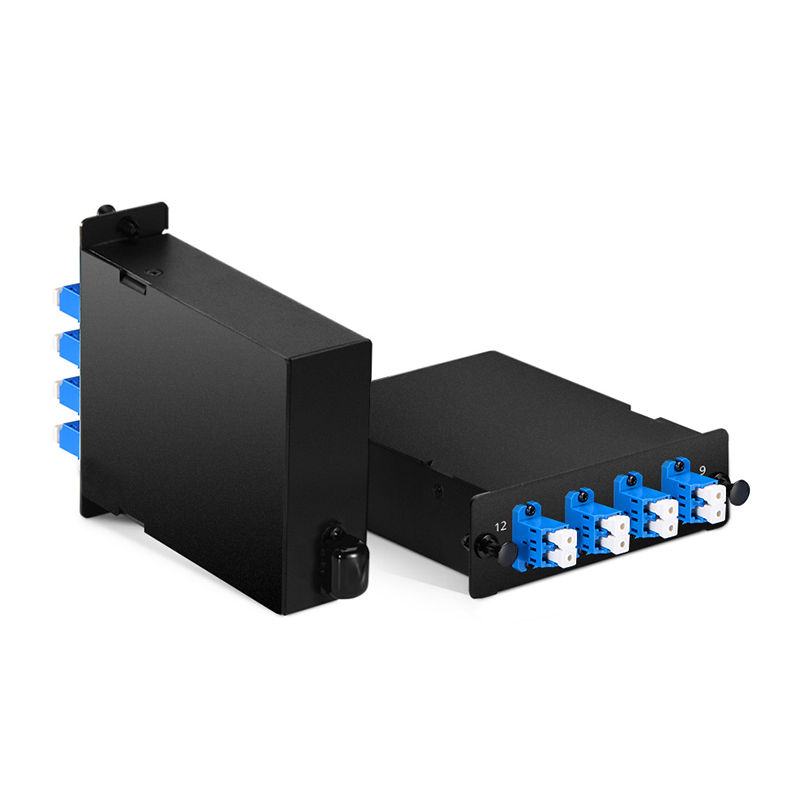

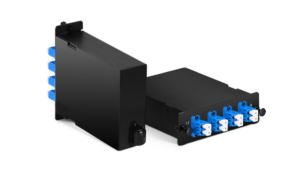

8cores MPO Male – LC Fan-out 0.9mm 30cm patch cable are designed for MPO-LC LGX module cassettes are terminated with MPO and LC connector on each end. It’s specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

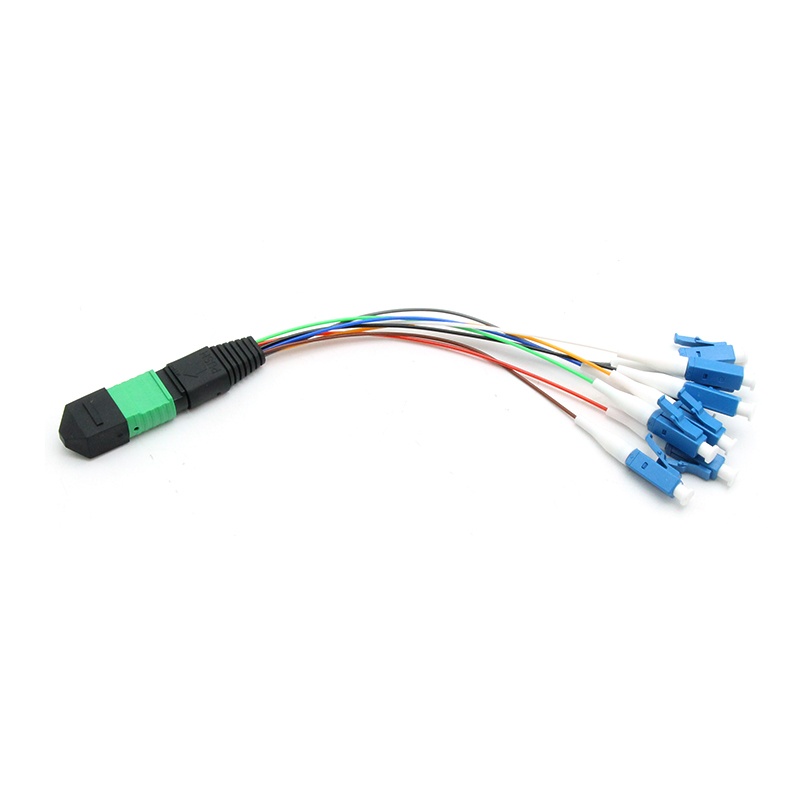

SM 8F MPO- LC/SC/FC/ST Fanout 0.9mm Cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications.

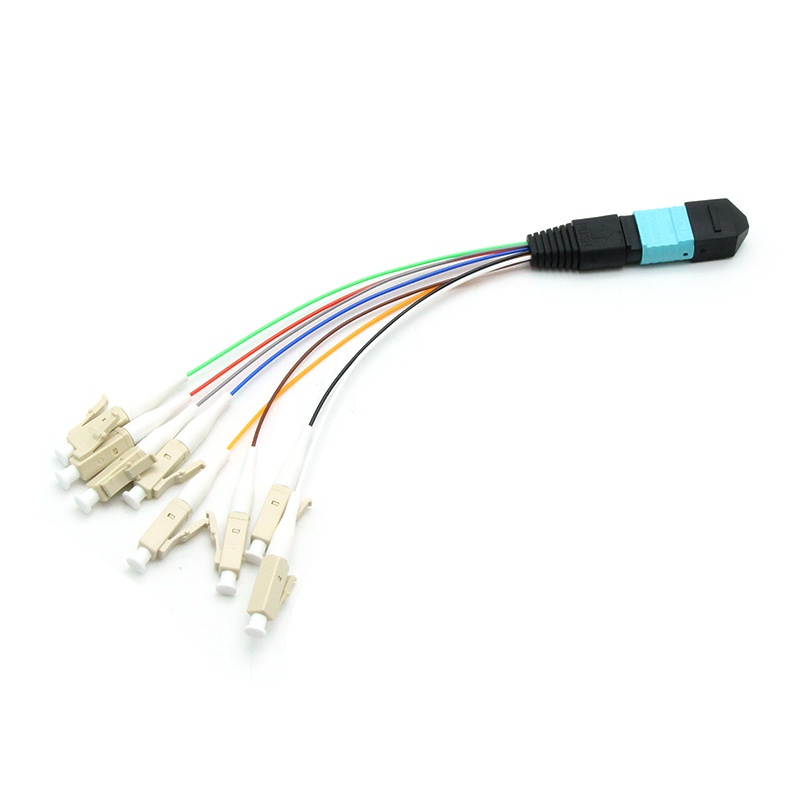

OM3/OM4 8F MPO- LC/SC/FC/ST Fanout 0.9mm Cables are optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.
This 8 Fiber harness cable is used for a direct connection between QSFP+ to (4) SFP+ ports with no patch panels or intermediate trunks in between.
Description
MPO-LC/SC/FC/ST Fan-out 0.9mm 30cm patch cable’s Specification:
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| Insertion loss (MPO)
(IEC 61300-3-34) |
Standard loss：≤0.75dB(max), ≤0.50dB(Typical)
Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss：≤0.6dB(max), ≤0.50(Typical)
Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Insertion loss (LC/SC/FC/ST)
(IEC 61300-3-6) |
≤0.3dB | ≤0.3dB |
| Return loss(MPO) | ≥60dB（8degree polishing） | ≥25dB |
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
MPO End-Face 3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | \ | |
| ROC-Y(ABS) | 50mm | \ | ||
| Angle | Angle-X | -0.2° | -0.2° | |
| Angle-Y | APC | 7.85° | 8.15° | |
| PC | -0.2° | -0.2° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||
LC/SC/FC/ST End-Face Geometry 3D Interference Index
| Items | Connector | PC End-face | APC End-face |
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm | |
| Apex Offset | ≤50 um | ||
| Fiber Spherical Height | +/- 100 nm | ||
| Angular Offset | —— | 8°± 0.5° | |
LC/SC/FC/ST End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
LC/SC/FC/ST End-face Quality (MM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||

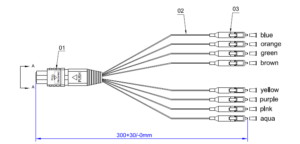

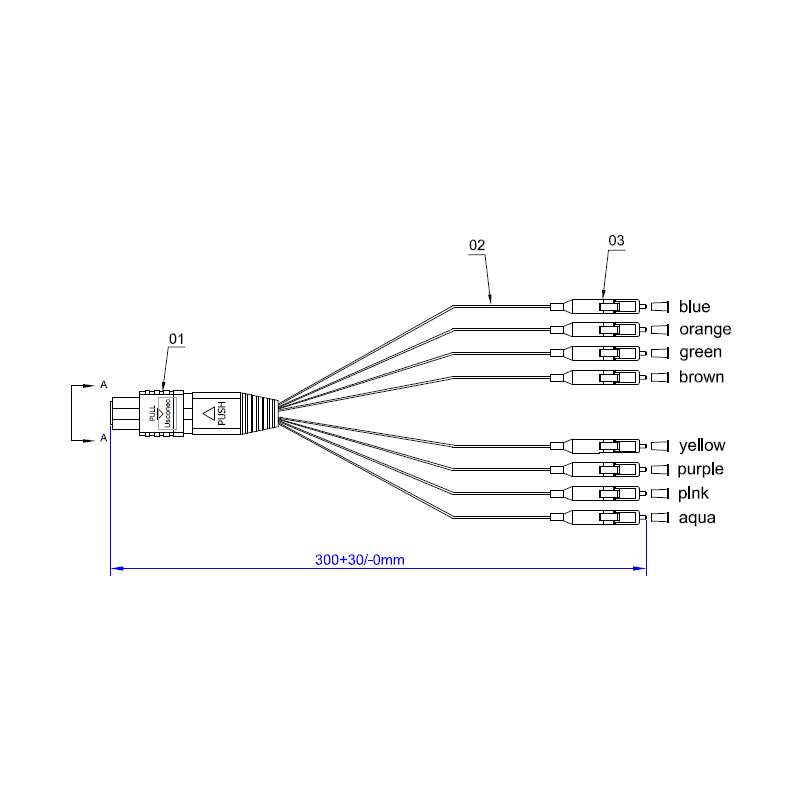

Cable Drawing
MPO Connector’s Details:
| Connector | Fiber Channel |
 |
 |
| MPO Male Connectors | 8 Fibers |
| Note: Female connector need to connect with male connector type. | |
| Connector | Reference | Housing Details |
| MPO Singlemode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MPO)
SM APC: Yellow connectors+black boot (Super low loss MPO) |
| MPO Multimode | IEC 61754-7 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
- Meets IEC Standard IEC-61754-7;IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Application
- 40G SR4 / BiDi Links: Connecting 40G QSFP+ transceivers (which use 8 fibers: 4 Tx, 4 Rx) to patch panels or cassette modules.
- 100G SWDM4: Supporting Short Wavelength Division Multiplexing applications that utilize 8-fiber parallel optics.
- High-Density Patch Panels: Ideal for connecting MPO trunk cables to 8-port or 16-port LC adapter panels in data centers.
