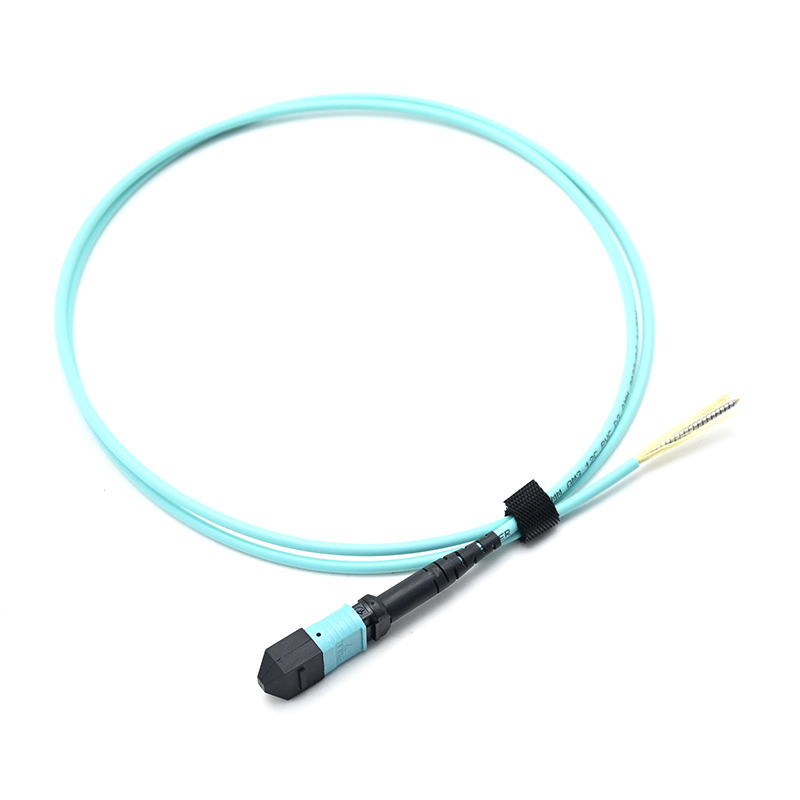

12F OM3 Armored MPO-MPO Trunk Cable -3.0mm
The 12-fiber OM3 armored MPO-MPO patch cord is a ruggedized, high-performance multimode fiber optic interconnect designed for short-reach, high-bandwidth applications in data center and enterprise environments. Terminated with 12-fiber MPO connectors on both ends, this patch cord delivers reliable multi-fiber connectivity with enhanced mechanical protection through its armored cable construction, making it ideal for parallel optics transceiver-to-transceiver links.
Description
Design Principles

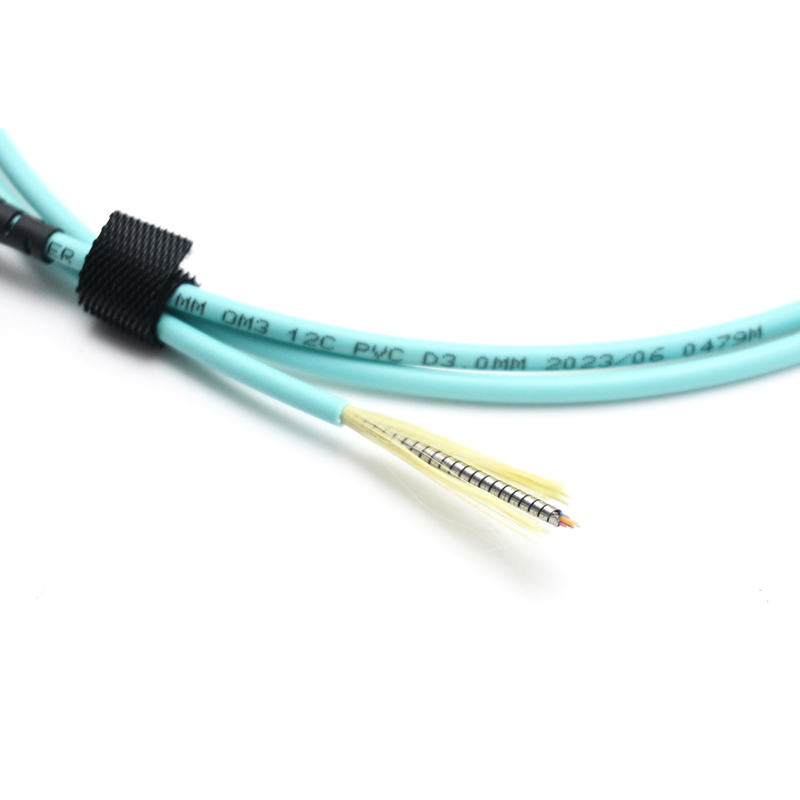

Armored Cable Construction. The cable integrates a helically wound stainless steel interlock armor layer surrounding the 12-fiber bundle, providing crush resistance ≥440 N/10 cm, full rodent protection, and superior impact and abrasion resistance. The armored design eliminates external conduit requirements in exposed cable runs—such as under raised floors, overhead cable trays, and between adjacent racks—reducing both material and installation costs in demanding environments.
OM3 Multimode Fiber Core. The patch cord houses twelve 50/125 μm laser-optimized multimode fibers (OM3, IEC 60793-2-10 Type A1a.2), supporting 850 nm VCSEL-based transmission with effective modal bandwidth (EMB) ≥ 2000 MHz·km. OM3 fiber enables 10GBASE-SR up to 300 m and 40G/100GBASE-SR4 up to 100 m, providing a cost-effective solution for intra-rack and inter-rack connectivity.
MPO Connector Technology. Both ends feature MPO connectors with precision-molded single-row MT ferrules housing twelve fibers. High-accuracy stainless steel guide pins ensure sub-micron alignment for repeatable, low-loss mating. Available in Type A and Type B (key-up/key-down) polarity configurations per TIA-568.2, supporting Method A and Method B polarity schemes for parallel optical links.
Optical Performance. MPO connectors achieve insertion loss ≤ 0.35 dB per mated pair and return loss ≥ 20 dB. Every assembly undergoes 100% end-face inspection per IEC 61300-3-35 and IL/RL verification per IEC 61300-3-4.
Environmental Compliance. Available in LSZH or OFNP jacket options, compliant with IEC 60754-2, IEC 61034-2, and NFPA 262. Operating temperature: -20°C to +70°C.
Optical Specification
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| Insertion loss (MPO)
(IEC 61300-3-34) |
Standard loss:≤0.75dB(max), ≤0.35dB(Typical)
Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss:≤0.6dB(max), ≤0.35(Typical)
Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
| Insertion loss (LC/SC/FC/ST)
(IEC 61300-3-6) |
≤0.3dB | ≤0.3dB |
| Return loss(MPO) | ≥60dB（8degree polishing） | ≥25dB |
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | \ | |
| ROC-Y(ABS) | 50mm | \ | ||
| Angle | Angle-X | -0.2° | -0.2° | |
| Angle-Y | APC | 7.85° | 8.15° | |
| PC | -0.2° | -0.2° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||
12F Pre-terminated MTP® Technology-Polarity
MTP® Connector Types
| Connector | Fiber Channel |
 |
 |
| MTP® Female Connectors | 12 Fibers |
| Note: Female connector need to connect with male connector type. | |
MTP® products’ Details& Standard:
| Connector | Reference | Housing Details |
| MTP® Singlemode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Elite MTP) |
| MTP® Multimode | IEC 61754-7 | OM3 PC: Aqua connectors+black boot (Standard Loss&Elite MTP)
OM4 PC: Magenta connectors+black boot (Standard Loss&Elite MTP) |
- Meets IEC Standard IEC-61754-7;IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3

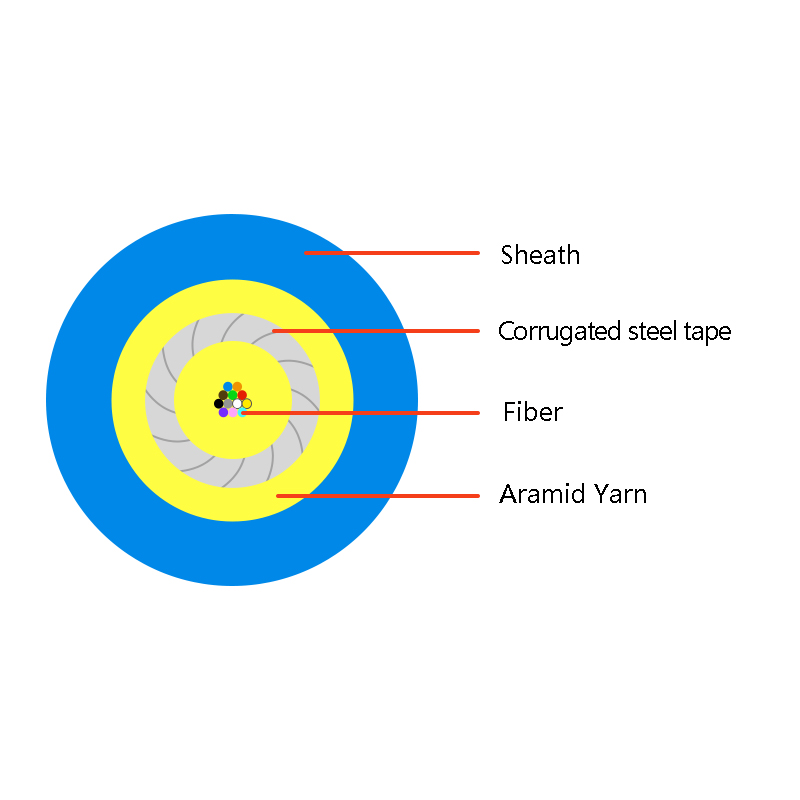

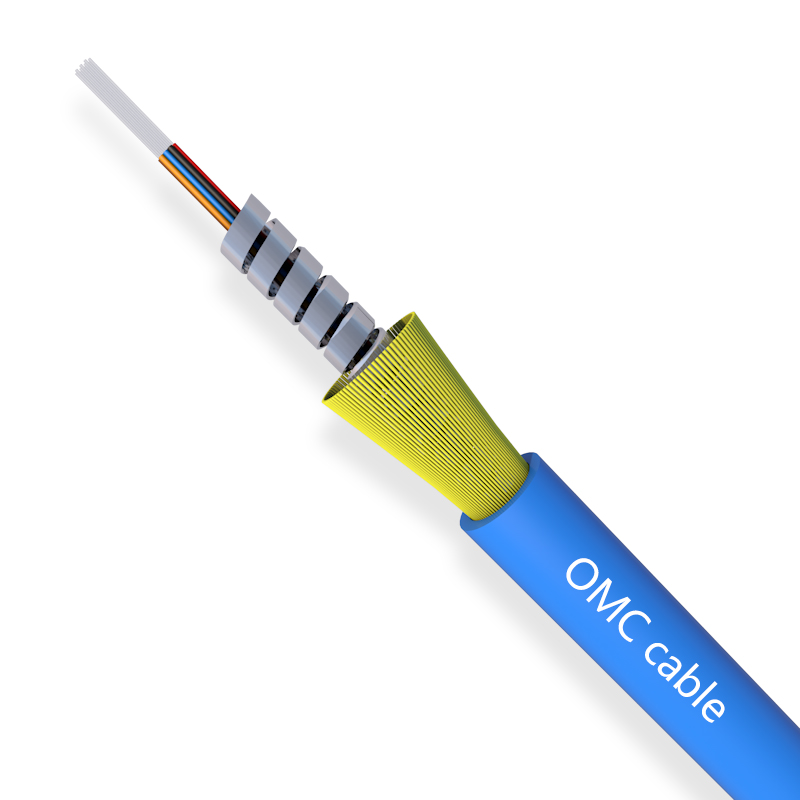

Cable Parameters-12F Microfiber cable 1
| Item | Contents | Unit | Data |
| Fiber type | / | / | SM G652D;OM2,OM3,OM4 |
| Cable diameter | ±0.3 | mm | 3.0±0.2 |
| Subunit fiber | Material | / | PVC,LSZH(CRP certification) |
| Fiber count | 12x250um | Blue,Orange,Green,Brown,Grey,White,
Red,Black,yellow,purple,pink,aqua |
|
| Armored unit | Material | / | SUS204 Stainless-steel Spiral Tube |
| Diameter | mm | 1.8±0.05 | |
| Strength member | Material | / | Aramid Yarn |
| Outer sheath | material | / | LSZH(CRP certification),PE,PVC,TPU,OFNP |
| Color | / | Blue,Yellow,Black, Orange,Grey,Aqua…….. | |
| Cable weight | ±5% | kg/km | 15 |

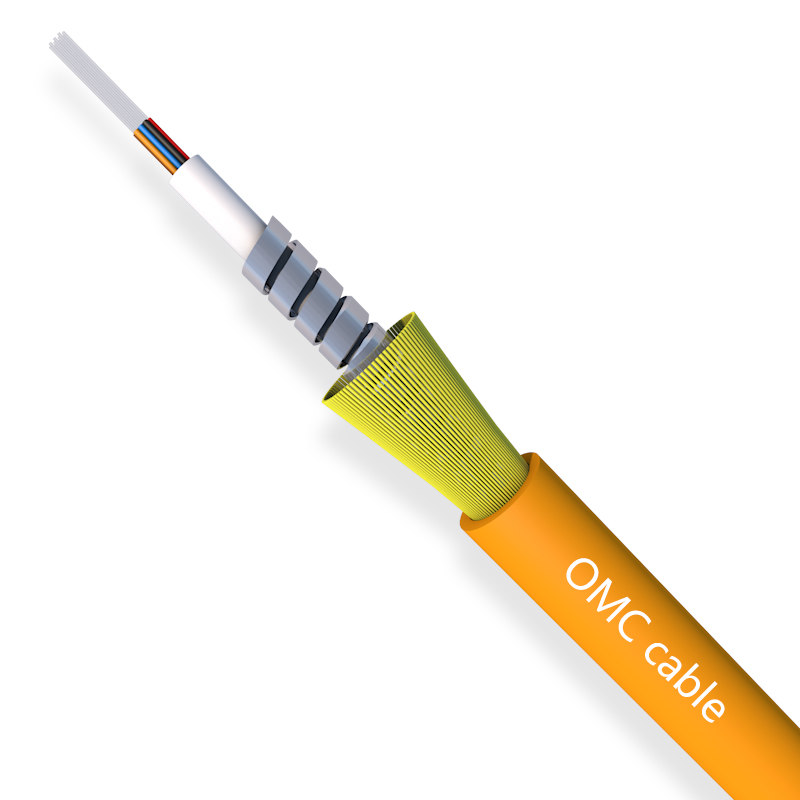

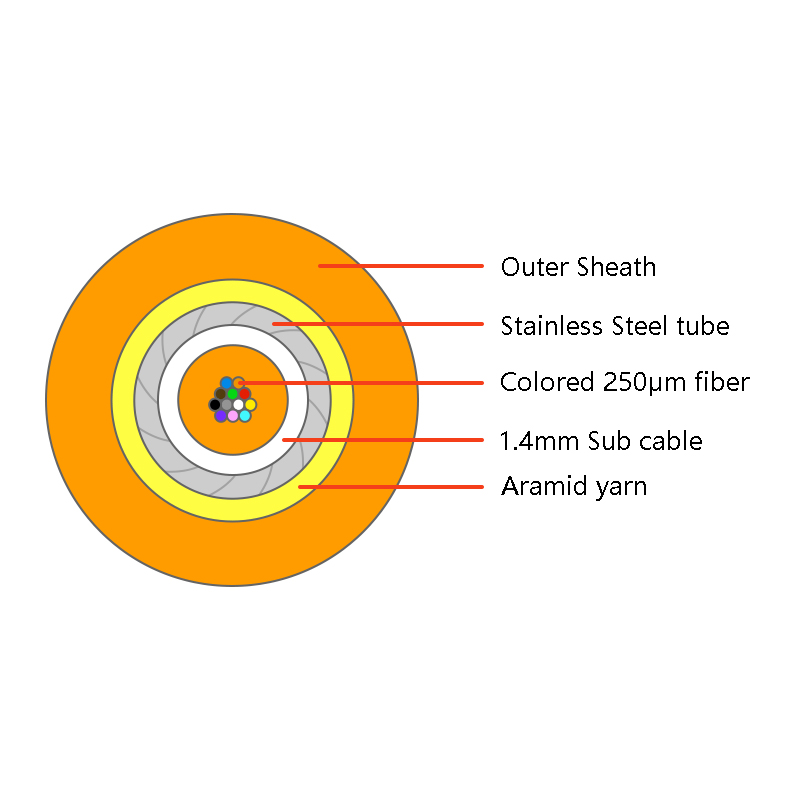

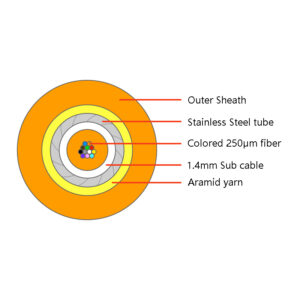

Cable Parameters-12F Microfiber cable 2
| Item | Contents | Unit | Data |
| Fiber type | / | / | SM G652D;OM2,OM3,OM4 |
| Cable diameter | ±0.3 | mm | 3.0±0.2 |
| Subunit cable | Material | / | PVC,LSZH(CRP certification) |
| Fiber count | 12x250um | Blue,Orange,Green,Brown,Grey,White,Red,Black, ,yellow,purple,pink,aqua, | |
| Diameter | mm | 1.4 | |
| Armored unit | Material | / | SUS204 Stainless-steel Spiral Tube |
| Diameter | mm | 2.0±0.2 | |
| Strength member | Material | / | Aramid Yarn |
| Outer sheath | material | / | LSZH(CRP certification),PE,PVC,TPU,OFNP |
| Color | / | Blue,Yellow,Black, Orange,Grey,Aqua…….. | |
| Cable weight | ±5% | kg/km | 15 |
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Short term | 600N fiber strain≤0.6% |
| Long term | 300N | |
| Max. crush resistance | Short term | 3000N/100mm |
| Long term | 1500N/100mm | |
| Min. bending radius | Installation | 40 x cable diameter |
| Operation | 20 x cable diameter | |
| Temperature range | Operation | -20℃ ~ +70℃ |
| Installation | -20℃ ~ +60℃ | |
| Storage/transportation | -20℃ ~ +70℃ |
Flame retardant Performance
| Cable material | Standard |
| LSZH | CPR : B2ca, Cca, Dca, Eca,Fca |
| OFNP&OFNR | UL-94V0 |
Cable Jacket Material
| Item | OFNP Plenum | LSZH | OFNR Riser |
| Smoke emission | Extremely low | Very low | Heavy black smoke |
| Toxic halogen gas | None | Zero | High (chloride) |
| Fire resistance rank | Highest | Medium | Medium-low |
| Plenum air space use | Allowed | Not UL certified, restricted | Strictly prohibited |
| Vertical riser shaft | Supported | Supported | Optimized for riser shafts |
| Rigidity & hardness | Stiff, firm texture | Soft, flexible | Moderate flexibility |
| Cost | Highest | Mid-range | Lowest |
Benefits of Armored Fiber Patch Cable
Common fiber optic cable is fragile, which needs to be protected, especially when in harsh applications where cables could be compromised by rodents, constant wear and tear or weather damage. Armored fiber patch cable retains all the features of standard fiber cable but is much stronger due to its extra layers of armor. With the protection of flexible and durable steel tube, armored fiber patch cable will ensure the excellent operation of your network.
Pre-terminated MTP Technology-Polarity 24F MTP:
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Application:
- Data Center Parallel Optics:Direct transceiver-to-transceiver links for 40GBASE-SR4 and 100GBASE-SR4 QSFP+ and QSFP28 modules in top-of-rack (ToR) and end-of-row (EoR) architectures, where armored protection guards against under-floor cable tray congestion and accidental.
- Enterprise Campus Networks:High-speed backbone interconnects between switches and servers over OM3 multimode infrastructure, supporting 10G/40G/100G Ethernet aggregation.
- Storage Area Networks (SAN):Fiber Channel links (8GFC/16GFC/32GFC) between storage arrays and SAN switches in data centers requiring ruggedized cable protection.
- Industrial Environments:Multimode fiber distribution in manufacturing facilities, control rooms, and process automation where cables face crush, vibration, and rodent threats.
- Telecom Aggregation:Short-reach multimode backbone links in central offices and points of presence (PoPs) for service provider edge deployments.
