24F OM4 Double Jacket Armored MPO Trunk Cable -5.0mm
The 24-fiber OM3 dual-jacket armored MPO-MPO patch cord is an ultra-high-density multimode fiber optic interconnect designed for next-generation parallel optics in data center and enterprise environments. Featuring a robust dual-jacket armored cable construction and terminated with 24-fiber MPO connectors on both ends, this patch cord delivers maximum fiber density with superior mechanical protection for 400G/800G and beyond transceiver architectures.
Description
Design Principles

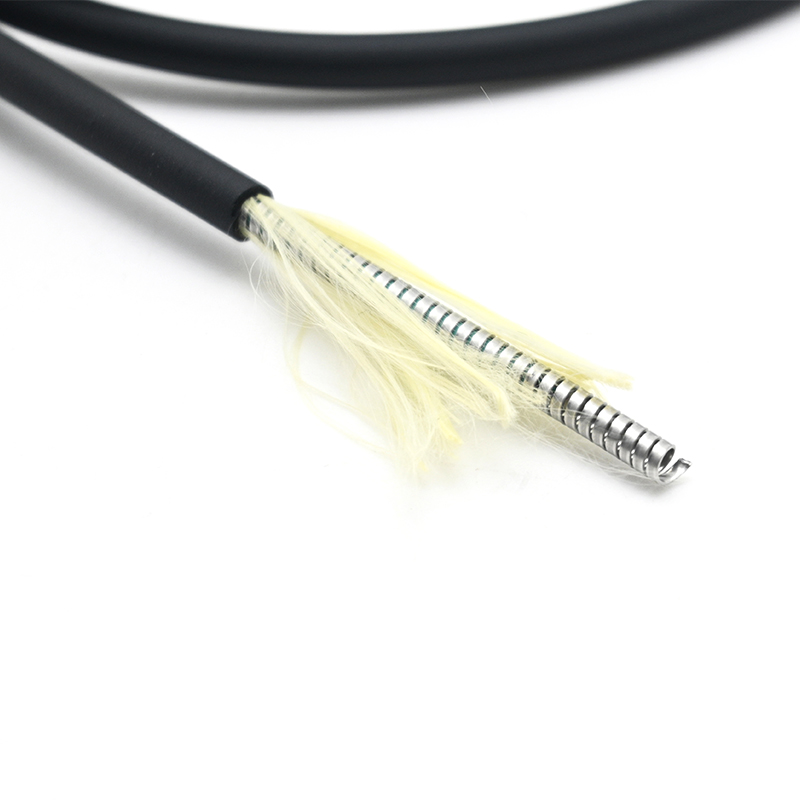

Dual-Jacket Armored Construction. The cable employs a two-layer jacket system: an inner LSZH/OFNP tight jacket encapsulating the fiber bundle, and an outer ruggedized jacket enclosing a helically wound stainless steel interlock armor layer. This dual-jacket design provides crush resistance ≥440 N/10 cm, full rodent protection, impact resistance, and an additional moisture and chemical barrier. The redundant jacket layers ensure cable integrity even if the outer jacket is compromised, making it ideal for extreme-duty and long-term deployments.
OM3 Multimode Fiber Core. The patch cord houses twenty-four 50/125 μm laser-optimized multimode fibers (OM3, IEC 60793-2-10 Type A1a.2) with effective modal bandwidth (EMB) ≥ 2000 MHz·km. OM3 fiber supports 400GBASE-SR4 up to 100 m and 100GBASE-SR4 up to 100 m at 850 nm, providing a cost-effective multimode solution for high-density, short-reach links.
24-Fiber MPO Connector Technology. Both ends feature MPO connectors with precision-molded dual-row MT ferrules housing twenty-four fibers in a 2×12 array. High-accuracy stainless steel guide pins ensure sub-micron alignment. The 24-fiber MPO format supports 800G DR8/FR8 and emerging 1.6T parallel optics architectures, maximizing fiber utilization per connector footprint. Available in Type A, Type B, and Type C polarity per TIA-568.2.
Optical Performance. MPO connectors achieve insertion loss ≤ 0.35 dB and return loss ≥ 20 dB. 100% end-face inspection per IEC 61300-3-35 and IL/RL verification per IEC 61300-3-4.
Environmental Compliance. Dual LSZH/OFNP jackets compliant with IEC 60754-2, IEC 61034-2, and NFPA 262. Operating temperature: -40°C to +75°C, extended range enabled by dual-jacket thermal insulation.
Optical Specification:
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| Insertion loss (MPO)
(IEC 61300-3-34) |
Standard MTP:≤0.75dB(max),≤0.35dB(Typical)
Elite MTP:≤0.35dB(max),≤0.20dB(Typical) |
Standard MTP:≤0.6dB(max),≤0.35(Typical)
Elite MTP:≤0.35dB(max),≤0.20dB(Typical) |
| Return loss(MPO) | ≥60dB（8degree polishing） | ≥25dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | \ | |
| ROC-Y(ABS) | 50mm | \ | ||
| Angle | Angle-X | -0.2° | -0.2° | |
| Angle-Y | APC | 7.85° | 8.15° | |
| PC | -0.2° | -0.2° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||
MPO Connector Types
| Connector | Fiber Channel |
 |
 |
| MTP® Female Connectors | 24 Fibers |
| Note: Female connector need to connect with male connector type. | |
MTP® products’ Details& Standard:
| Connector | Reference | Housing Details |
| MTP® Singlemode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Elite MTP) |
| MTP® Multimode | IEC 61754-7 | OM3 PC: Aqua connectors+black boot (Standard Loss&Elite MTP)
OM4 PC: Magenta connectors+black boot (Standard Loss&Elite MTP) |
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3

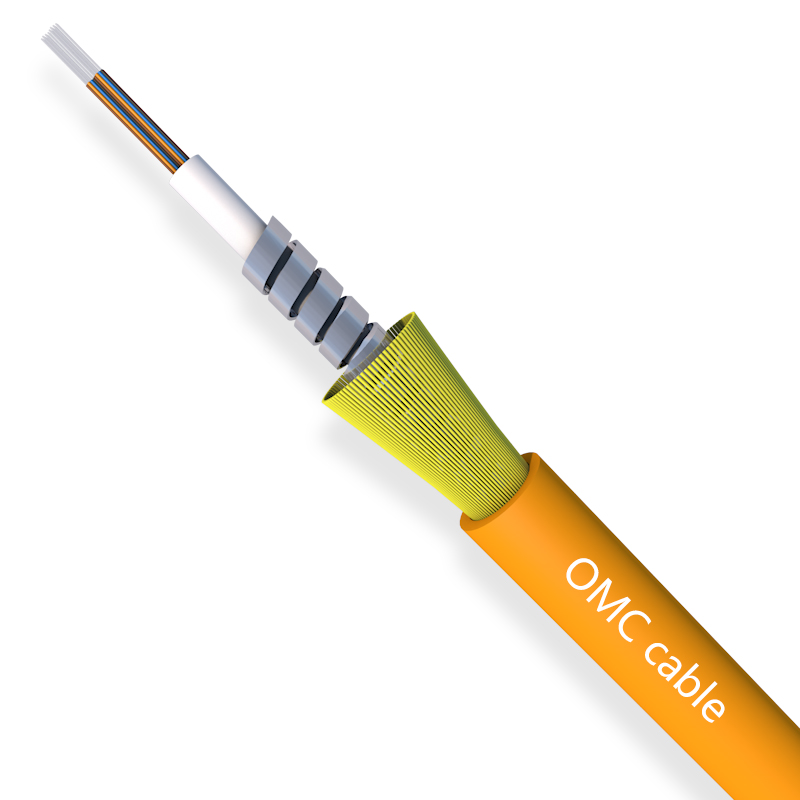

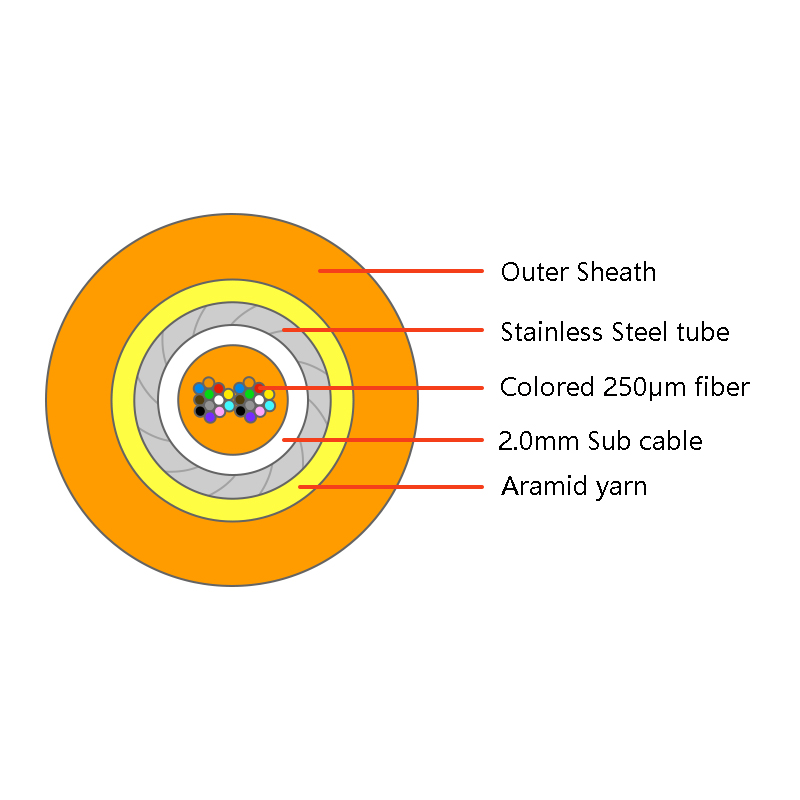

Cable Parameters-24F Microfiber cable
| Item | Contents | Unit | Data |
| Fiber type | / | / | SM G652D;OM2,OM3,OM4 |
| Cable diameter | ±0.3 | mm | 5.0±0.2 |
| Subunit cable | Material | / | PVC,LSZH(CRP certification) |
| Fiber count | 24x250um | Blue,Orange,Green,Brown,Grey,White,
Red,Black,yellow,purple,pink,aqua, Blue+,Orange+,Green+,Brown+, Grey+,White+, Red+,Black+,yellow+,purple+,pink+,aqua+, |
|
| Diameter | mm | 2.0 | |
| Armored unit | Material | / | SUS204 Stainless-steel Spiral Tube |
| Diameter | mm | 2.8±0.2 | |
| Strength member | Material | / | Aramid Yarn |
| Outer sheath | material | / | LSZH(CRP certification),PE,PVC,TPU,OFNP |
| Color | / | Blue,Yellow,Black, Orange,Grey,Aqua…….. | |
| Cable weight | ±5% | kg/km | 46 |
Mechanical & Environmental Performance
| Item | Contents | Value |
| Max. tensile load | Short term | 600N fiber strain≤0.6% |
| Long term | 300N | |
| Max. crush resistance | Short term | 3000N/100mm |
| Long term | 1500N/100mm | |
| Min. bending radius | Installation | 60 x cable diameter |
| Operation | 30 x cable diameter | |
| Temperature range | Operation | -20℃ ~ +70℃ |
| Installation | -20℃ ~ +60℃ | |
| Storage/transportation | -20℃ ~ +70℃ |
Flame retardant Performance
| Cable material | Standard |
| LSZH | CPR : B2ca, Cca, Dca, Eca,Fca |
| OFNP&OFNR | UL-94V0 |
Cable Jacket Material
| Item | OFNP Plenum | LSZH | OFNR Riser |
| Smoke emission | Extremely low | Very low | Heavy black smoke |
| Toxic halogen gas | None | Zero | High (chloride) |
| Fire resistance rank | Highest | Medium | Medium-low |
| Plenum air space use | Allowed | Not UL certified, restricted | Strictly prohibited |
| Vertical riser shaft | Supported | Supported | Optimized for riser shafts |
| Rigidity & hardness | Stiff, firm texture | Soft, flexible | Moderate flexibility |
| Cost | Highest | Mid-range | Lowest |
Benefits of Armored Fiber Patch Cable
Common fiber optic cable is fragile, which needs to be protected, especially when in harsh applications where cables could be compromised by rodents, constant wear and tear or weather damage. Armored fiber patch cable retains all the features of standard fiber cable but is much stronger due to its extra layers of armor. With the protection of flexible and durable steel tube, armored fiber patch cable will ensure the excellent operation of your network.

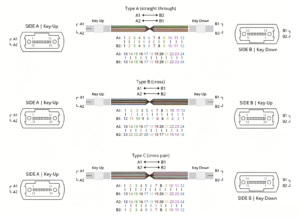

Pre-terminated MTP Technology-Polarity 24F MTP:
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Application:
- 400G/800G/1.6T Data Center Parallel Optics: Ultra-high-density transceiver links for QSFP-DD and OSFP modules in spine-leaf and fat-tree architectures requiring maximum cable protection.
- AI/HPC Cluster Interconnects: High-fiber-count GPU server and InfiniBand/Ethernet fabric connectivity in AI training clusters where dual-jacket armor guards against under-floor congestion.
- Underground & Duct Routing: Inter-building backbone links in underground conduit systems where dual-jacket construction resists moisture ingress, rodent intrusion, and mechanical damage.
- Industrial & Petrochemical: Multimode fiber distribution in refineries, chemical plants, and offshore platforms exposed to chemicals, vibration, and abrasion.
- Military & Defense:Tactical multimode networks requiring ruggedized assemblies for rapid field deployment under harsh conditions.
